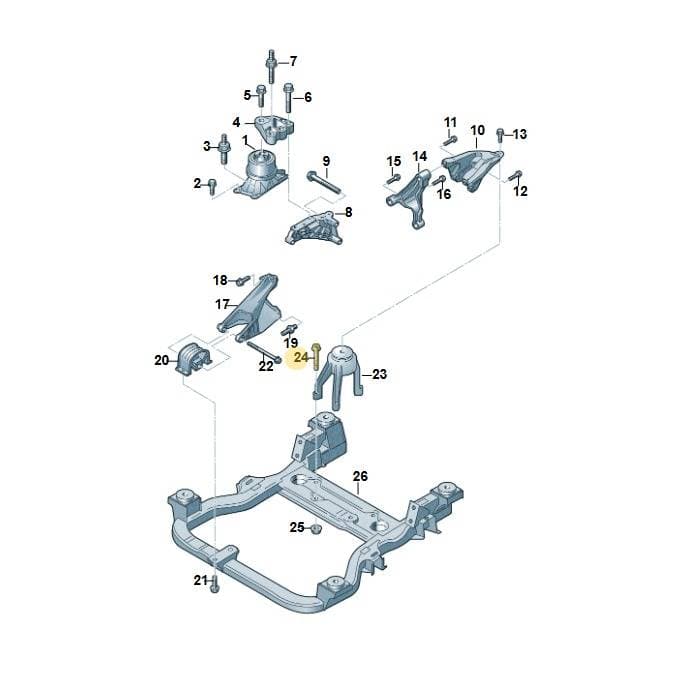

Number 24 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Socket Head Collared Bolt, part number N91028002. This bolt is used in various assemblies, providing secure fastening. It is located in the engine assembly. Its specific dimensions ensure precise fitment within its designated location. Genuine OEM bolts offer exact thread pitch and material strength for reliable component attachment.
Catalogue entry: BOLT M8X75 ×4.
Fitted with: N91023602 BOLT, 7LA199849 ENG.MOUNTI, 7LA199849C ENG.MOUNTI, 7LA199849A ENG.MOUNTI, 7LA199849D ENG.MOUNTI, 7LA199849B ENG.MOUNTI, 7LA199849E ENG.MOUNTI, N90798805 COLLAR NUT.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.6 × 1.6 × 8.2 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M8x75 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
30 vehiclesHex Socket Head Collared Bolt — locate N91028002 Volkswagen Hex Socket Head Collared Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
