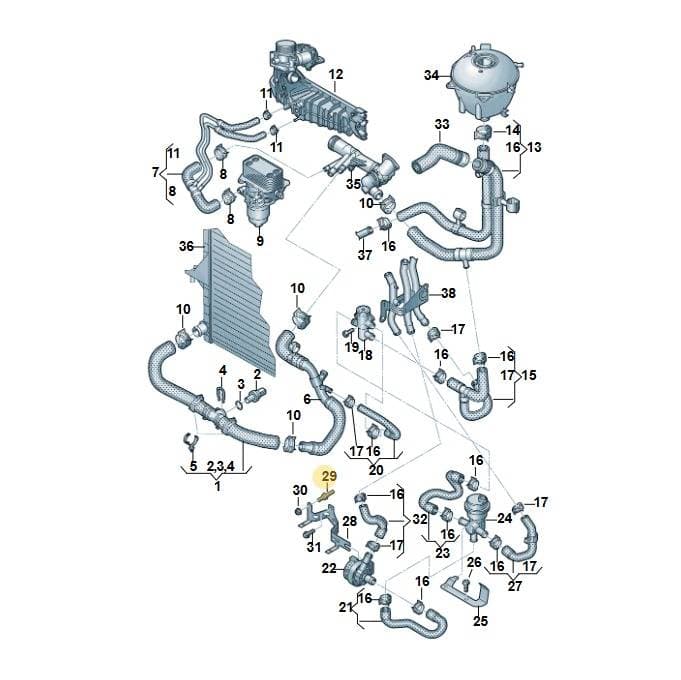

Number 29 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Double Stud With Hexagon Drive, part number N91127301. This threaded fastener features two ends for component mounting and a central hexagon drive for installation. It is used in the engine cooling system assembly. Genuine OEM fasteners are manufactured with precise thread tolerances and corrosion-resistant finishes to ensure they maintain a secure connection in the high-heat and moisture-prone environment of the cooling system.
Catalogue entry: BOLT M10X35/M10X16.
Fitted with: N91225504 CLAMP, N91227501 CLAMP, 7LA965567B PUMP, N10261311 Hexagon nut, N10261307 Hexagon nut, N10563402 SCREW.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6 × 2.2 × 2.2 cm
- Shipping weight
- 0.05 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
As printed in the catalogue
- M10X35/M10X16
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
14 vehiclesDouble Stud With Hexagon Drive — locate N91127301 Volkswagen Double Stud With Hexagon Drive | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly48
- 1Hose 7E0122101H
- 1Hose 7LA122051
- 1Hose 7LA122096E
- 2Sender 05C919501
- 2Clamp N90687201
- 2Clamp N91225504
- 3Seal Ring N90316801
- 3Clamp N91227501
- 4Spring 032121142
- 4Hose 7E0121447F
- 4Hose 7LA122109A
- 5Clip 2D0121129A
- 5Clamp N90686701
- 6Hose 7LA121096
- 6Hose 7LA122051A
- 6Clamp N90687101
- 7Hose 04L121049H
- 7Hose 7LA122096C
- 8Hose 7LA121058
- 8Water Pipe 7LA121065N
- 8Clamp N90687001
- 9Water Pipe 04L121194C
- 9Bolt N90780904
- 10Spacer 052129734
- 10Bolt N10405604
- 11Grommet 046131887
- 11Seal Ring WHT002287B
- 12Valve 03N906249H
- 12Valve 03N906249K
- 12Sensor 079919523H
- 13Hose 7LA122447F
- 13Hose 7LA122447J
- 13Retainer 7LA121079B
- 13Hose 7LA122101A
- 13Hose 7LA122447G
- 14Hose 7LA121086S
- 14Clamp N90686704
- 15Hose 7LA121086T
- 15Hose 7LA122058B
- 15Clamp N90770201
- 16Hose 7LA121086R
- 16Bracket N10767001
- 17Hose 7LA122096B
- 17Hose 7LA122447E
- 18Pump 7LA965567B
- 18Water Pump 2Q0965567A
- 18Valve 7LA121113
- 18Hose 7LA122447C
Vehicle fitment table14
Europe (14)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|

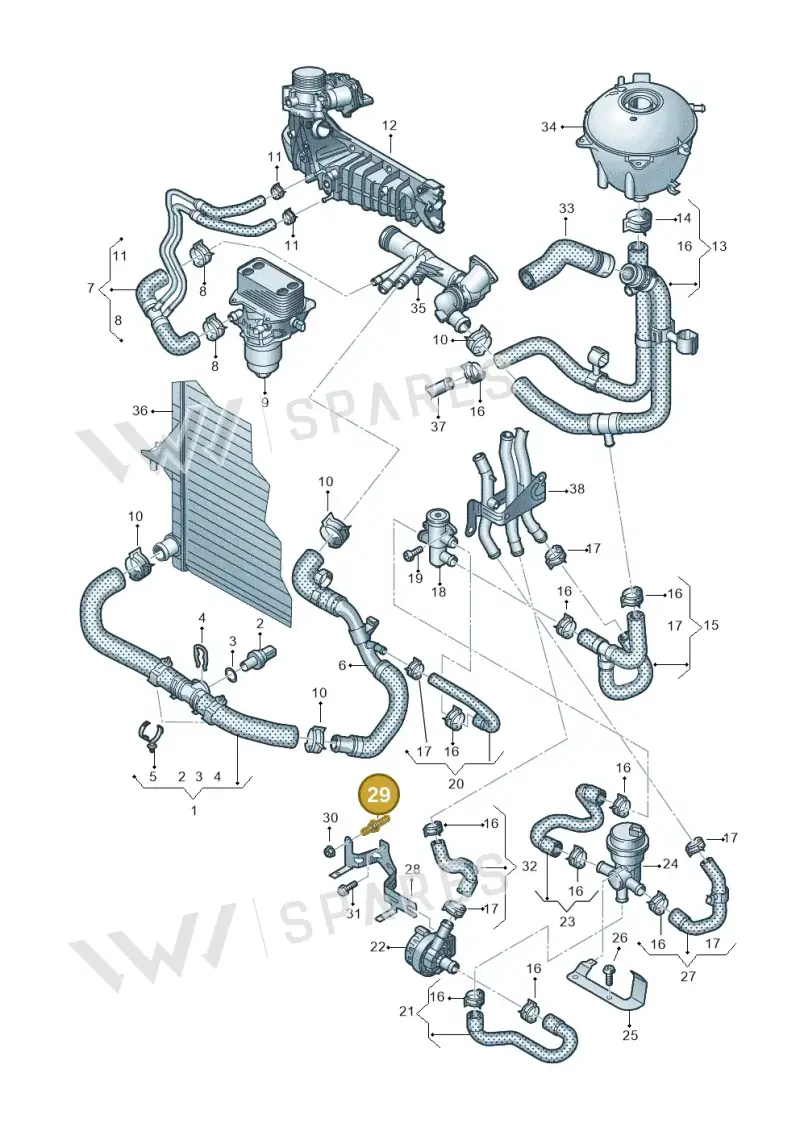

| transport. multivan | 2019-2024 | 29 | 1 |
| caravelle | 2019-2024 | 29 | 1 |
| Single-cab transp. | 2019-2024 | 29 | 1 |

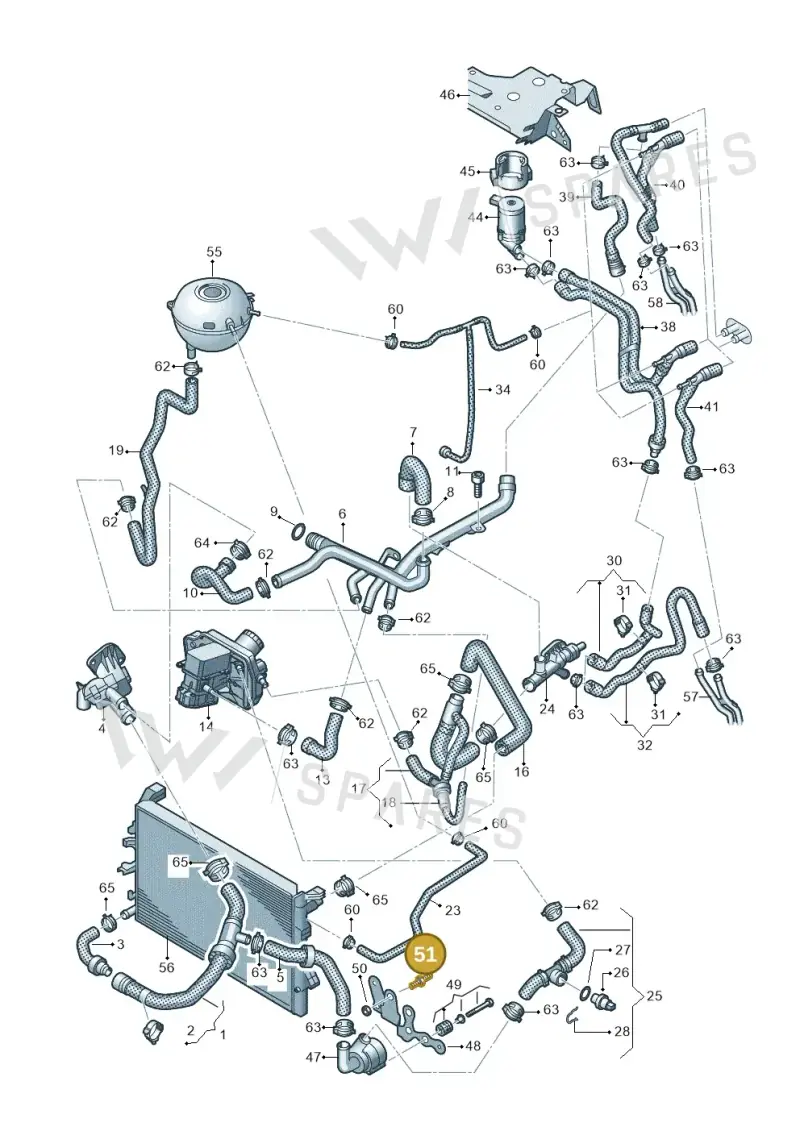

| caravelle | 2015-2019 | 51 | 1 |
| Single-cab transp. | 2015-2019 | 51 | 1 |
| California Camper | 2015-2019 | 51 | 1 |

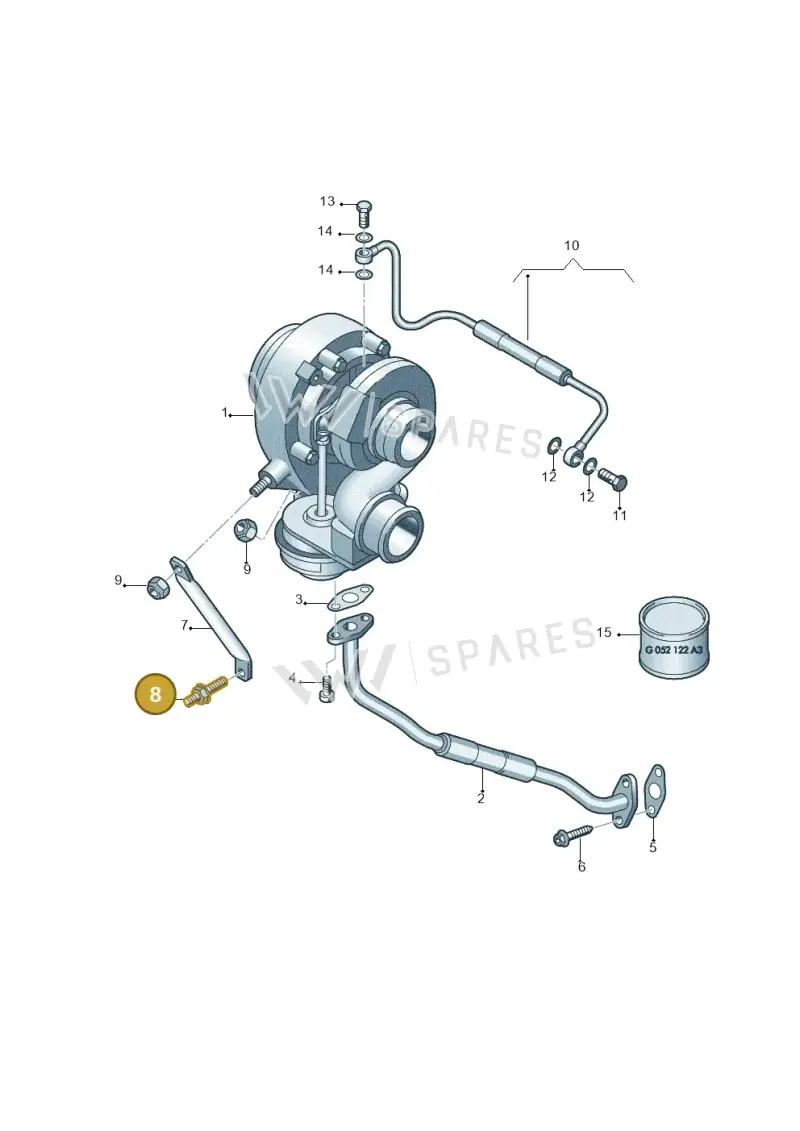

| Crafter 35 panel | 2011-2016 | 8 | 1 |

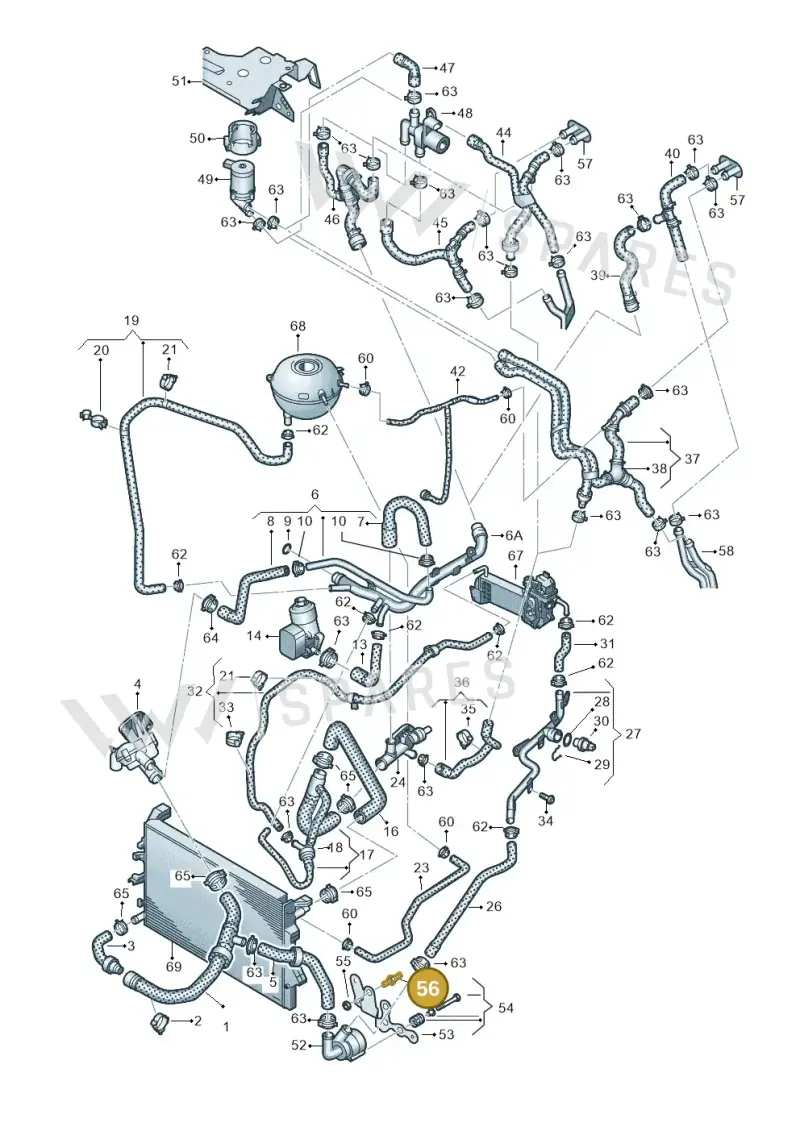

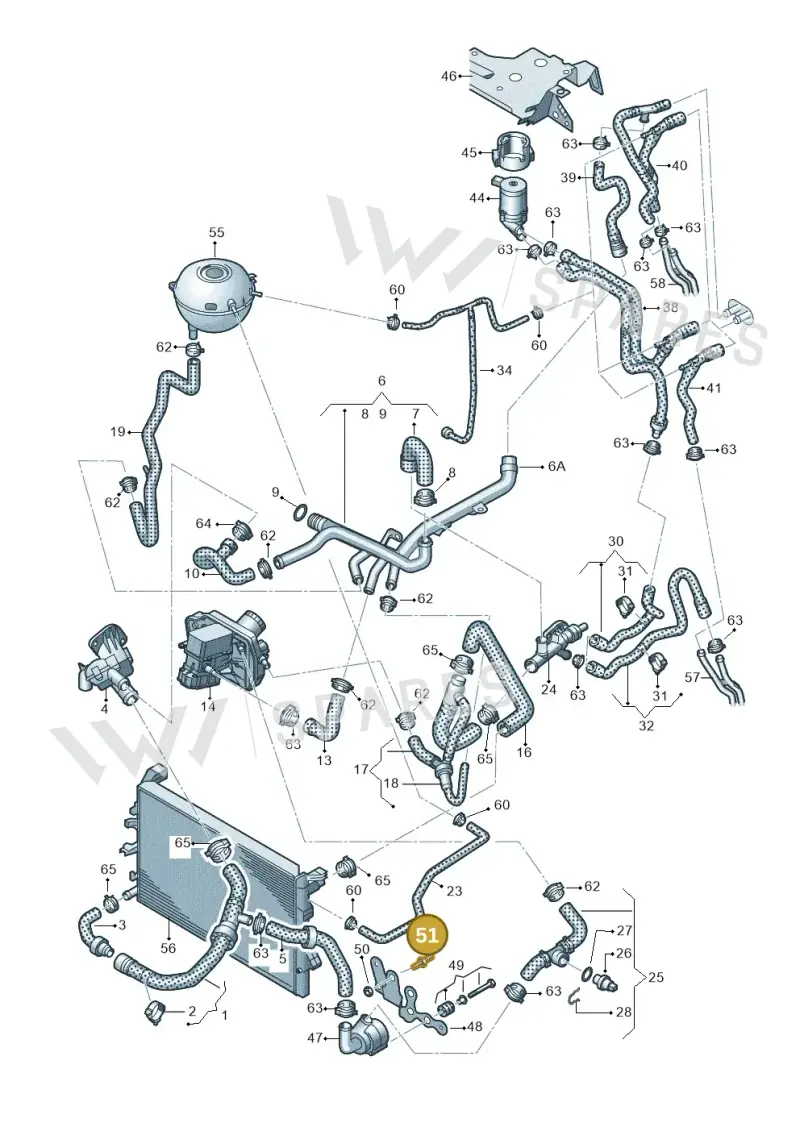

| transp. caravelle | 2011-2015 | 51, 56 | 1 |
