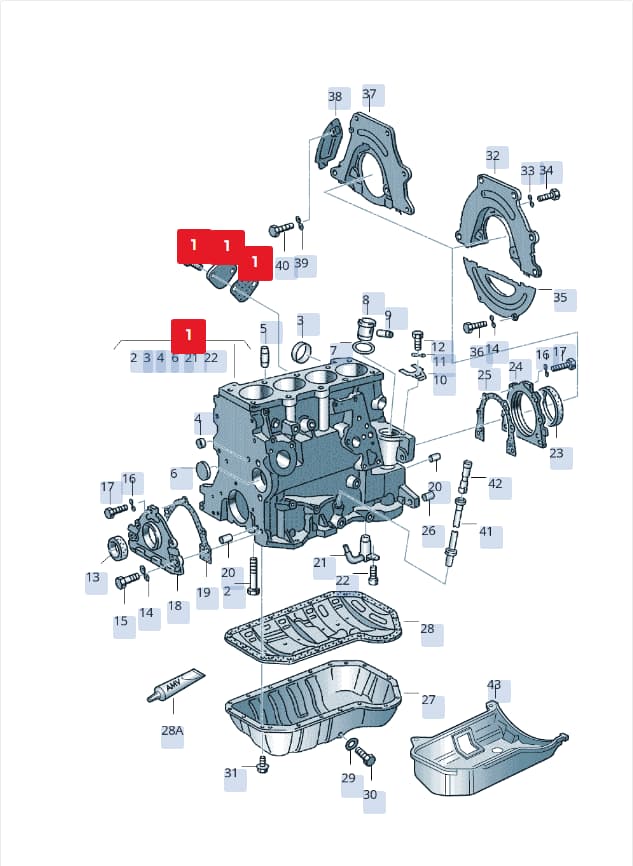

Number 1 marks the part’s position in the exploded view (Volkswagen GOLF VAR./VENTO (1996-1999)).
Product overview
028103101G Genuine OEM Volkswagen Cylinder Block With Pistons, part number 028103101H. This is the main structural component of the engine, housing the cylinders and pistons. It is the foundation for the entire engine assembly. Manufactured from high-strength cast iron for exceptional durability and resistance to thermal stress. Genuine OEM parts ensure precise fitment and factory-calibrated performance.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39 × 33.5 × 29.5 cm
- Shipping weight
- 45 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
9 vehiclesCylinder Block With Pistons — locate 028103101G 028103101H Volkswagen Cylinder Block | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Cylinder Block 028103101AC
- 1Cylinder Block 028103101AD
- 1Cylinder Block 028103101D
- 2Bolt N90130001
- 2Bolt N10263801
- 3Cover 036103113A
- 4Cover N0119077
- 5Sleeve 028103039A
- 5Part 026103139
- 7Seal Ring 056905261
- 8Bush 056103541
- 9Rivet N0162011
- 9Bungs 056103117
- 10Bracket 028905256
- 11Washer N0122293
- 12Bolt N01024416
- 13Seal 068103085E
- 14Washer N01224110
- 15Bolt N01024016
- 16Washer N0122265
- 17Bolt N01021612
- 19Seal 026103161B
- 20Part N0432072
- 21Vent 068103157D
- 22Screw N90241501
- 24Flange 068103171F
- 25Seal 026103181B
- 26Sleeve 022103139
- 27Oil Sump 051103601
- 28Seal 044103609D
- 28Lock 037115220B
- 29Seal Ring N0138492
- 30Plug N90288901
- 31Bolt N90423402
- 35Cover 068103648K
- 35Cover 038103648A
- 36Bolt N0102276
- 37Cover 068103621E
- 38Coverplate 038103645A
- 40Bolt N0102085
- 41Tube 028103634
- 42Funnel 028103663B
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| GOLF VAR./VENTO | 1996-1999 | 1 | 1 | 1Z,AHU |
| Golf | 1996-1997 | 1 | 1 | |
| Passat | 1994-1997 | 1 | 1 | 1Z,AHU |
| Golf Cabrio | 1994-1996 | 1 | 1 | 1Z |
| Golf/Ecomatic 95 | 1994-1995 | 1 | 1 | 1Z |
| Golf Var./Vento 95 | 1994-1995 | 1 | 1 | 1Z |
| Golf/Var. syncro | 1993-1997 | 1 | 1 | |
| Jetta GLX 94 | 1993-1994 | 1 | 1 | 1Z |
| GOLF/Ecomatic | 1991-1994 | 1 | 1 | 1Z |
Diagrams & fitment data powered by oemdiagrams.com
028103101G 028103101H Volkswagen Cylinder Block | Genuine OEM is fitted on: GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994.
