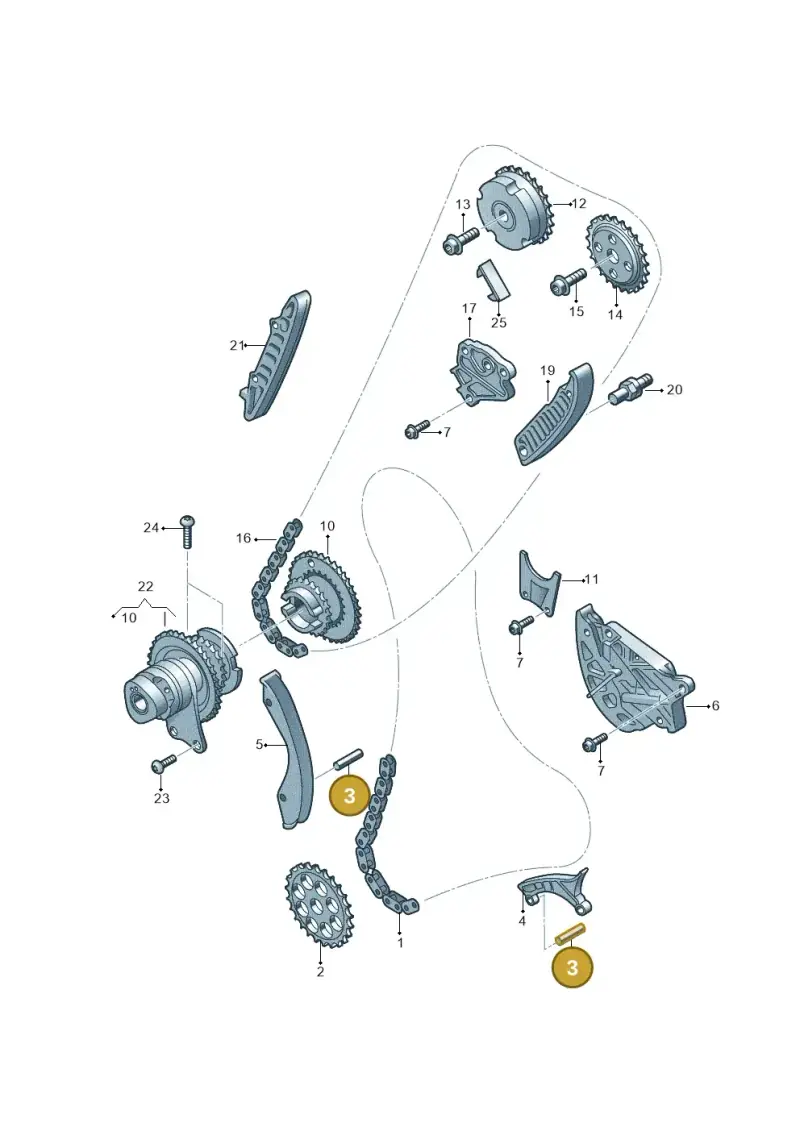

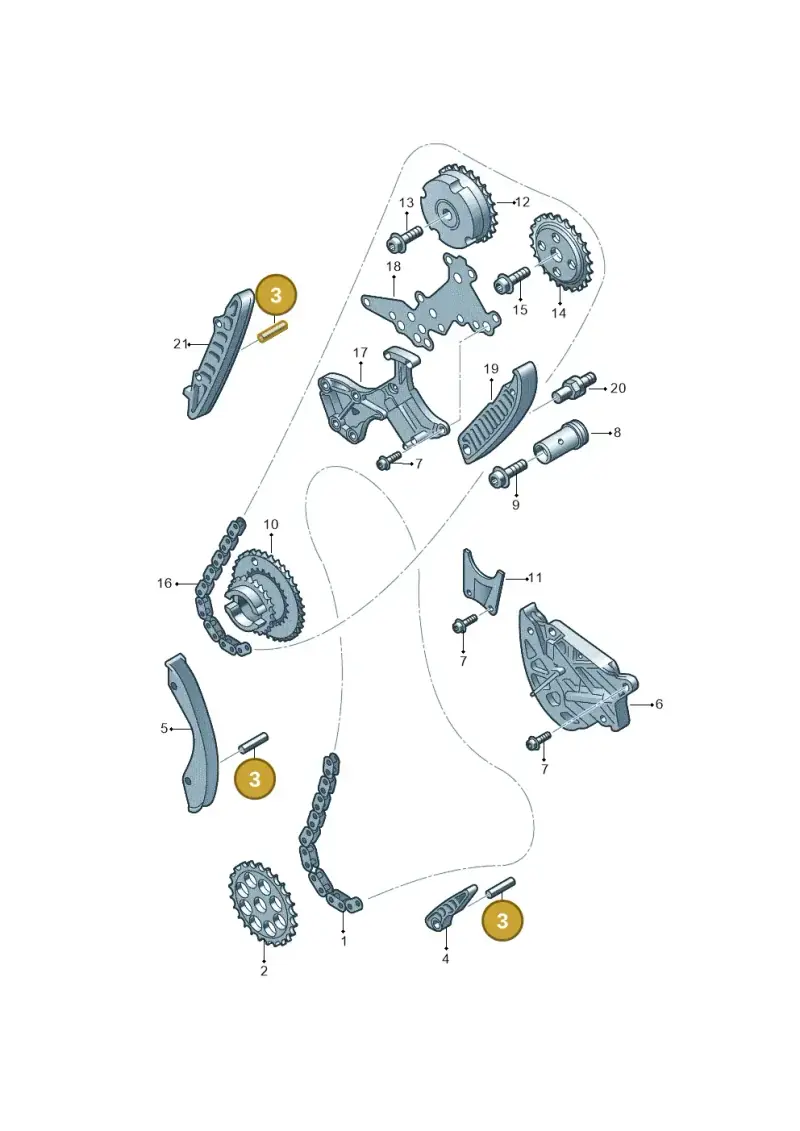

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cylinder Pin, part number WHT000041. This cylindrical pin is used for locating and aligning components within the engine timing system. It is shown as part of the timing chain guides and tensioners. Genuine OEM pins are manufactured to exact dimensions and material specifications to ensure proper alignment and prevent component shifting, critical for precise engine timing.
Catalogue entry: Cylinder pin 8X30 ×6.
Technical details
- Category
- Engine
- Customs (HS) code
- 73182200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3 × 0.8 × 0.8 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 8x30
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

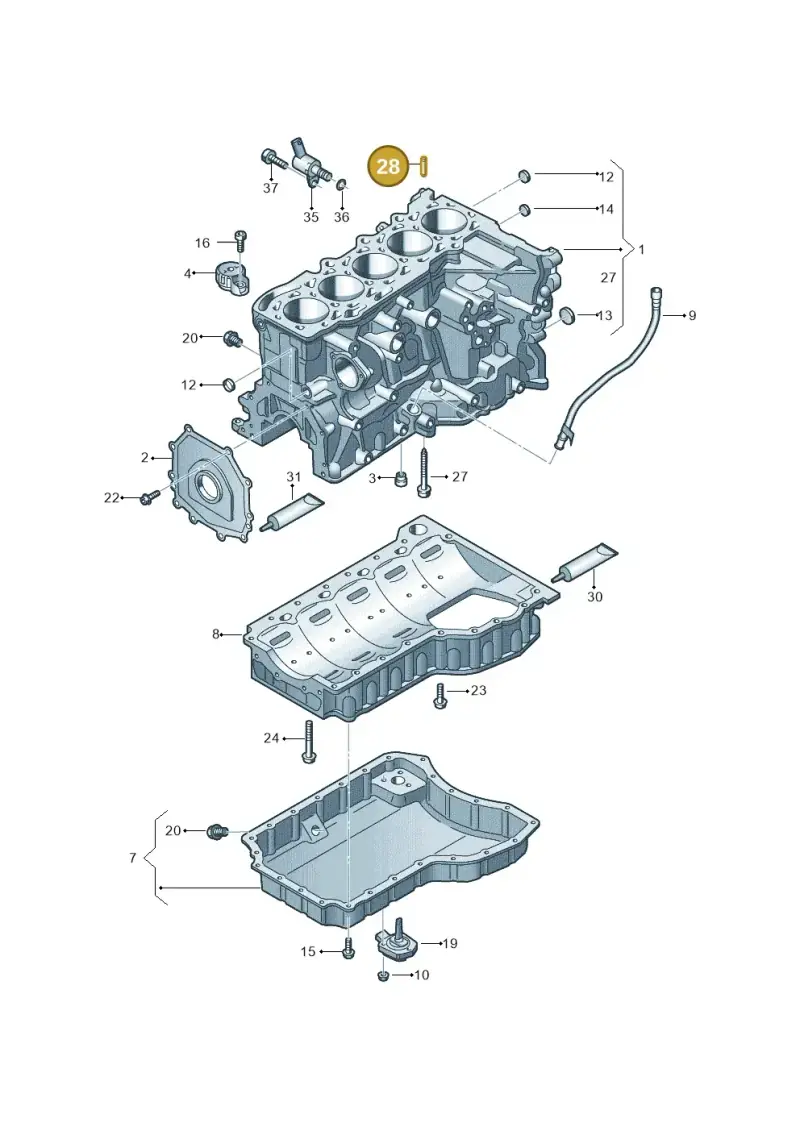

27 vehiclesCylinder Pin — locate WHT000041 Volkswagen Cylinder Pin | Engine in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly41
- 1Cylinder Head 07K103064D
- 4Cover 07K109283R
- 5Bolt N10653301
- 6Connection 07K103499A
- 8Part 06D103251
- 9Bolt N90281802
- 10Cover WHT008983
- 11Seal D176501A1
- 12Bolt 06F103397
- 13Bolt N91250701
- 14Bolt N0443954
- 15Part D154108A2
- 16Bolt N91127602
- 17Seal 07K103383AF
- 18Seal 07K109345
- 19Screw N10554005
- 20Bolt WHT007848D
- 21Bolt N91071701
- 22Sensor 06E919501C
- 23Cover 06K103485D
- 24Part N0131994
- 26Sleeve 059103139B
- 27Bolt N91116001
- 28Stud N91250601
- 29Bungs 06H115418P
- 30Partition 06L103411C
- 31Tappets 06L109311
- 32Bolt N91148001
- 35Bracket 07K133163Q
- 36Retainer 07K133163H
- 37Bolt N10405604
- 38Collar Nut N01508210
- 39Grommet 1T0805673A
- 40Clip 06E971739
- 41Pipe 07K103281C
- 42Seal Ring 04L133287
- 43Bolt N10725401
- 44Eyelet 07K103390J
- 45Eyelet 07K103390L
- 46Part N91142201
- 47Part N10619001
Vehicle fitment table27
Europe (24)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Formentor TSI CUPRA | 2020- | 7, 3 | 2 | |
| Audi RSQ3 Sportback | 2019-2024 | 7, 3 | 2 | |
| Audi A3 Sportback | 2019-2021 | 3, 7 | 4 | |
| Audi RS3 Limousine | 2017-2020 | 7, 3 | 2 | |
| Audi TTRS Coupe | 2016-2023 | 7, 3 | 2 | |
| Beetle | 2016-2019 | 3 | 6 | |
| new beetle cabriolet | 2016-2019 | 3 | 6 | |
| Audi RS3 Sportback | 2015-2016 | 28, 3, 30 | 2 | |
| jetta | 2014-2017 | 3 | 6 | |
| Audi RSQ3 qu. 2.5 | 2013-2018 | 28, 3, 30 | 2 | |
| new beetle | 2011-2016 | 3 | 6 | |
| new beetle cabriolet | 2011-2016 | 3 | 6 | |
| Golf | 2011-2013 | 3 | 6 | D77 |
| Audi RS3 Sportback | 2011-2012 | 28, 3, 30 | 2 | D07 |
| jetta | 2010-2014 | 3 | 6 | |
| Audi TTRS Plus Coupe | 2009-2014 | 28, 3, 30 | 2 | D06 |
| jetta variant | 2009-2014 | 3 | 6 | |
| golf estate | 2009-2013 | 3 | 6 | |
| Jetta Vagon 08> | 2008- | 3 | 6 | D77 |
| golf 2.0 | 2008-2011 | 3 | 6 | D77 |
| jetta | 2008-2011 | 3 | 6 | |
| JETTA 06> | 2005- | 3 | 6 | D4F |
| New Beetle 06> | 2005- | 20 | 6 | |
| New Beetle Cabrio. 06> | 2005- | 3 | 6 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| New Passat | 2015-2022 | 3 | 6 | |
| New Passat | 2011-2015 | 3 | 6 | D77 |
| Jetta "USA"05> | 2005- | 3 | 6 | D4F |
