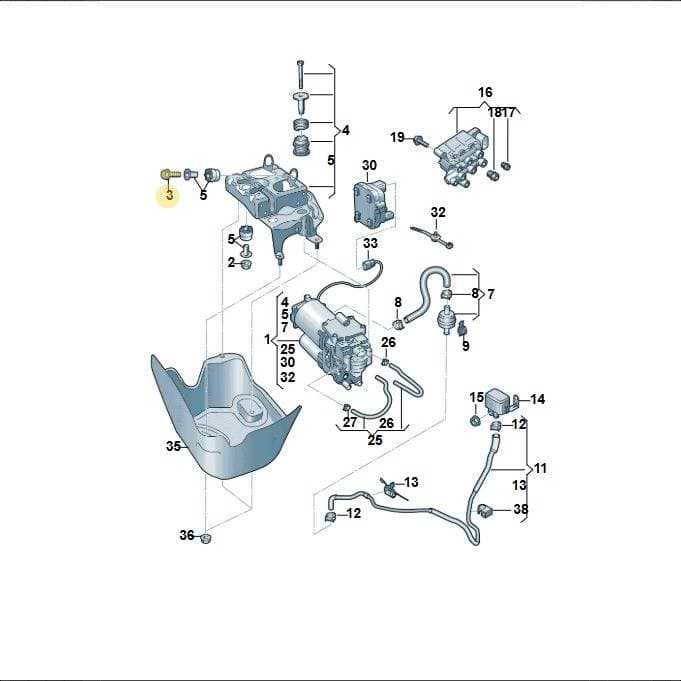

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Head Bolt, part number N91207001. This fastener is designed to secure components within the air supply and valve unit assembly, typically found in air suspension systems. It provides the necessary clamping force to maintain the integrity of the compressor mounting bracket. As a genuine VAG part, it features the correct thread pitch and material strength required for high-vibration environments. Using original hardware ensures factory-spec torque retention and superior corrosion resistance compared to generic alternatives.
Catalogue entry: BOLT M6X45 ×2.
Fitted with: 4M0616005G ASSEMBLY, 4M0616005H ASSEMBLY, 4M0616005J ASSEMBLY, N90570805 UT"hex. nut, self-locking with washer, N90686701 CLAMP, 4B0616751 Connection, 7L0616758 Connection, 3B0973852A HOUSING, N90887703 UT Hexagon flange nut, self-locking.
Technical details
- Category
- Suspension
- Customs (HS) code
- 73181575
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.2 × 2.2 × 4.9 cm
- Shipping weight
- 0.02 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x45 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
34 vehiclesHexagon Head Bolt (combi) — locate N91207001 Volkswagen Hexagon Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly28
- 1Assembly PAB616005A
- 2Compressor PAB616007
- 3Part PAB616013
- 4Screw N10721401
- 5Control Unit PAB907778
- 7Hose PAB616091
- 8Cable Tie 9A797183800
- 9Exhaust Si 95861601000
- 10Part N90495301
- 11Plate PAB616105
- 12Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 13Press Res 958616204F
- 15Part 95861671500
- 16Line 9Y0616711A
- 17Cable Tie 6H0957818
- 18Line 9Y0616712A
- 19Line 9Y2616720
- 19Line 9Y1616720
- 20Line 9Y2616719
- 20Line 9Y1616719
- 22Bungs 9Y0616579
- 23Rep Set 9J1616640
- 24Rep Set 9Y0616640A
- 25Part 9Y0907727N
- 25Control Unit 9Y0907727R
- 26Retainer 9Y0927347
- 27Screw N10669501
- 28Screw PAF003841
Vehicle fitment table34
Europe (17)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Cayenne Hybrid Coupe | 2023- | 6 | 2 | |
| Audi RS Q8 Quattro | 2019- | 3 | 2 | |
| Audi Q8 Quattro 3,0 | 2018- | 3 | 2 | |
| Audi Q8 e-tron | 2018-2020 | 28, 2 | 4 | |
| touareg | 2017-2023 | 3 | 2 | |
| Cayenne Diesel V6 | 2017-2023 | 2 | 2 | |
| Audi Q5 | 2016-2020 | 11 | 2 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 15 | 1 | |
| audi a4 2.0 | 2015-2019 | 15 | 1 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 3 | 2 | |
| Audi A7 Sportback | 2014-2018 | 24 | 2 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 24 | 2 | |
| Audi RS6 Avant | 2013-2018 | 24 | 2 | 2MA |
| Audi RS7 Sportback | 2013-2018 | 24 | 2 | 2MA |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 24, 6 | 2 | 1BY |
| Audi A7 Sportback | 2010-2015 | 24 | 2 | |
| audi a6 2.0 tdi | 2010-2015 | 24 | 2 |
Other markets (17)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Atlas Cross Sport | 2023- | 7 | 3 | |
| Atlas | 2023-2024 | 7 | 3 | |
| Audi Q6 | 2022- | 7 | 3 | |
| B-Main SUV | 2022- | 7 | X | |
| Teramont | 2021-2023 | 7 | 3 | |
| Teramont X | 2021-2023 | 7 | 3 | |
| Viloran | 2021-2022 | 7 | 3 | |
| Audi e-tron | 2020-2023 | 28, 2 | 4 | |
| Viloran | 2020-2022 | 7 | 3 | |
| Atlas Cross Sport | 2019-2023 | 7 | 3 | |
| Teramont X | 2019-2021 | 7 | 3 | |
| Phideon | 2016-2023 | 24 | 2 | 1BS |
| Atlas | 2016-2023 | 7 | 3 | |
| Teramont | 2016-2021 | 7 | 3 | |
| audi a6 1.8 | 2015-2019 | 24 | 2 | 1BS |
| Audi A6 L 2.0 | 2011-2013 | 24 | 2 | 1BS |
| 30G platform | 7 | X |
