Target · Diagram
Find this reference above

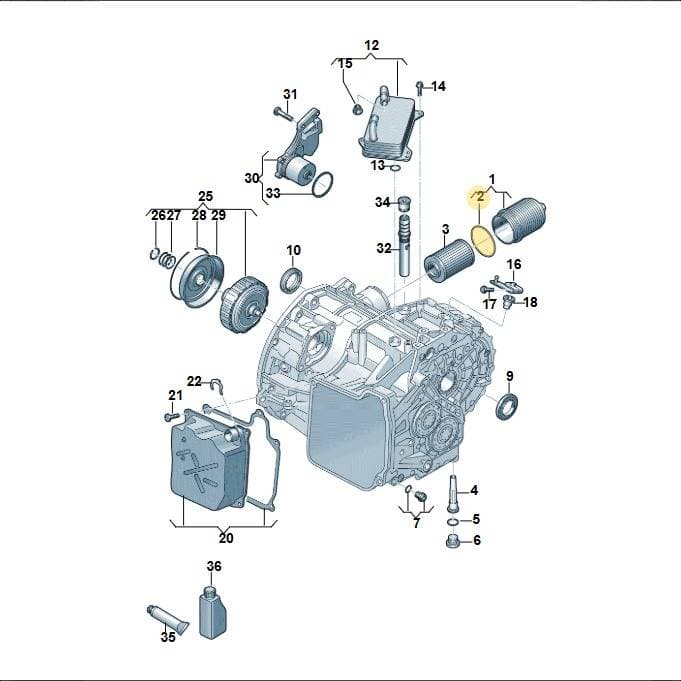

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen O-ring seal, part number N91084501. This seal is designed to provide a leak-proof connection between mating components in the transmission or engine assembly. It is constructed from high-grade, fluid-resistant rubber compound to ensure long-term durability and elasticity. Genuine OEM seals are critical for maintaining system pressure and preventing contamination, as they are engineered to the exact cross-sectional diameter and material composition required for the specific application.
Catalogue entry: SEAL. RING 63,09X3,53.
Fitted with: 02E305051C FILTERELEM.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6.3 × 7 × 0.3 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 63.09x3.53
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Replaces older part numbers
This is the current manufacturer number. Older numbers on this road are no longer supplied.
- 02E398051Superseded
Oct 2013 - N91084501This pageCurrent number
Parts diagram & fitment
176 vehiclesO-ring — locate N91084501 Volkswagen O-Ring Seal | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly35
- 1Housing 0BH325159
- 3Filterelem 0GC325183A
- 3Filterelem 0GC325183D
- 4Oil Pipe 0GC321363
- 5Seal Ring N0438092
- 6Screw N90215404
- 7Bolt N90965401
- 9Seal Washer 0BH409400E
- 12Oil Cooler 0GC317019C
- 12Oil Cooler 0GC317019F
- 13Seal Ring WHT008226
- 14Screw N91048802
- 15Filterelem 0GC317093
- 16Lever 0BH321171
- 17Bolt N90441603
- 18Seal Ring 095321182B
- 20Cover 0GC325201L
- 21Screw N91032702
- 22Clip 0BH325147
- 25Rep Set 0GC398029C
- 25Rep Set 0GC398029E
- 25Rep Set 0GC398029K
- 26Ring 0BH311321
- 27Shims 0BH398008
- 28Ring 0BH301859A
- 29Cover 0GC301205B
- 29Cover 0GC301205D
- 30Drive 0GC927373M
- 31Bolt N10632102
- 32Pipe 0GC301047D
- 33Seal Ring 0GC927115
- 35Grease G000100
- 35Seal Greas G055128A1
- 35Grease G060735A2
- 36Il Dual Clutch Transmission Fluid Dual Clutch G055529A2
Vehicle fitment table178
Europe (139)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Kodiaq | 2024- | 2 | 1 | |
| passat estate | 2023- | 2 | 1 | |
| Tiguan 2.0 | 2023- | 2 | 1 | |
| Superb Combi | 2023- | 2 | 1 | |
| Multivan | 2021- | 2 | 1 | |
| Formentor TSI CUPRA | 2020- | 10 | 1 | |
| Caddy Maxi Kombi | 2020-2024 | 2 | 1 | |
| Leon style | 2019- | 2 | 1 | |
| transport. multivan | 2019-2024 | 2 | 1 | |
| caravelle | 2019-2024 | 2 | 1 | |
| Single-cab transp. | 2019-2024 | 2 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 2 | 1 | |
| Audi RSQ3 Sportback | 2019-2024 | 10 | 1 | |
| Octavia | 2019-2024 | 2 | 1 | |
| Audi A3 Sportback | 2019-2021 | 2 | 1 | |
| Audi A1 sportback 1.0 | 2018- | 2 | 1 | |
| Tarraco FR | 2018-2024 | 2 | 1 | |
| Kodiaq | 2018-2022 | 2 | 1 | |
| Audi Q3 quattro | 2018-2019 | 2 | 1 | |
| T-Roc BlueMotion | 2017-2024 | 2 | 1 | |
| Tiguan 2.0 4Motion | 2017-2024 | 2 | 1 | |
| Polo 1.0 BlueMotion | 2017-2024 | 2 | 1 | |
| Arteon | 2017-2023 | 2 | 1 | |
| Karoq | 2017-2022 | 2 | 1 | |
| Audi RS3 Limousine | 2017-2020 | 10 | 1 | |
| Octavia | 2017-2020 | 10 | 1 | |
| Audi Q3 1.4 | 2016- | 14A | 1 | |
| Ateca Style | 2016- | 10 | 1 | |
| Tiguan 2.0 4Motion | 2016-2024 | 2 | 1 | |
| Kodiaq | 2016-2024 | 2 | 1 | |
| Audi TTRS Coupe | 2016-2023 | 10 | 1 | |
| golf 2.0 | 2016-2020 | 2 | 1 | |
| Audi A3 Sportback | 2016-2020 | 14A | 1 | G1A |
| Audi A3 Cabrio | 2016-2020 | 14A | 1 | G1A |
| Leon ST Stylance | 2016-2020 | 2 | 1 | |
| Beetle | 2016-2019 | 14A | 1 | |
| new beetle cabriolet | 2016-2019 | 14A | 1 | |
| Audi Q2 2.0 TDI | 2016-2018 | 14A | 1 | G1A |
| Touran 2,0 BlueMotion | 2015-2024 | 2 | 1 | |
| Audi R8 Spyder | 2015-2024 | 11 | 1 | |
| Superb Combi | 2015-2024 | 2 | 1 | |
| Sharan BlueMotion | 2015-2022 | 2, 20 | 1 | |
| Alhambra Stylance | 2015-2022 | 20 | 1 | |
| caddy kombi | 2015-2020 | 20 | 1 | |
| caravelle | 2015-2019 | 2 | 1 | |
| Single-cab transp. | 2015-2019 | 2 | 1 | |
| golf 1.6 | 2015-2019 | 19 | 1 | |
| California Camper | 2015-2019 | 2 | 1 | |
| Audi RS3 Sportback | 2015-2016 | 10 | 1 | |
| Passat saloon | 2014-2024 | 2 | 1 | |
| Audi TTS Coupe 2.0 | 2014-2023 | 14A | 1 | |
| Golf Sportsvan 1.6 | 2014-2020 | 2 | 1 | |
| Audi Q3 2.0 TDI | 2014-2019 | 14A | 1 | |
| Golf 1.4 BlueMotion | 2014-2017 | 2 | 1 | |
| Scirocco 2.0 | 2014-2017 | 14A | 1 | |
| jetta | 2014-2017 | 14A | 1 | |
| Golf Estate 1.4 | 2014-2017 | 2 | 1 | |
| Audi RSQ3 qu. 2.5 | 2013-2018 | 10 | 1 | |
| Golf Estate | 2013-2017 | 20 | 1 | |
| Yeti | 2013-2017 | 14A | 1 | |
| Audi A3 Cab. 1.4 | 2013-2016 | 14A | 1 | |
| superb | 2013-2015 | 14A | 1 | |
| Altea XL Reference | 2013-2013 | 14A | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 20, 17 | 1 | |
| Octavia | 2012-2017 | 14A | 1 | |
| Audi A3 Sportback | 2012-2016 | 14A | 1 | |
| Audi Q3 1.4 | 2012-2016 | 10 | 1 | G1C |
| Leon ST Stylance | 2012-2016 | 19 | 1 | |
| Audi R8 qu. 5.2 | 2012-2015 | 11 | 1 | G1K |
| Tiguan 4Motion | 2011-2018 | 35, 14A | 1 | |
| new beetle | 2011-2016 | 14A | 1 | |
| new beetle cabriolet | 2011-2016 | 14A | 1 | |
| Golf Cabriolet | 2011-2016 | 14A | 1 | |
| Passat CC | 2011-2016 | 14A | 1 | |
| transp. caravelle | 2011-2015 | 10 | 1 | |
| transp. dropside | 2011-2015 | 10 | 1 | |
| California Camper | 2011-2015 | 10 | 1 | |
| Audi Q3 quattro | 2011-2015 | 10 | 1 | |
| Golf Plus | 2011-2014 | 14A | 1 | |
| Golf | 2011-2013 | 14A | 1 | |
| Audi RS3 Sportback | 2011-2012 | 10 | 1 | G1D |
| Sharan Blue Motion | 2010-2015 | 14A | 1 | |
| Caddy Maxi Kombi | 2010-2015 | 14A | 1 | |
| Touran 2.0 | 2010-2015 | 14A | 1 | |
| Passat saloon | 2010-2015 | 14A | 1 | |
| Eos BlueMotion | 2010-2015 | 14A | 1 | |
| jetta | 2010-2014 | 14A | 1 | |
| Audi TTS Coupe 2.0 | 2010-2014 | 14A | ||
| Altea XL Reference | 2010-2013 | 14A | 1 | |
| Alhambra Stylance | 2010-2013 | 14A | 1 | |
| Leon Stylance | 2010-2012 | 14A | 1 | |
| Superb Ambition | 2009-2015 | 14A | 1 | |
| jetta variant | 2009-2014 | 14A | 1 | |
| Golf | 2009-2014 | 14A | 1 | 0ES |
| Audi TTRS Plus Coupe | 2009-2014 | 10 | 1 | G1D |
| golf estate | 2009-2013 | 14A | 1 | |
| Yeti | 2009-2013 | 14A | 1 | |
| Golf Plus 1.6 | 2009-2011 | 14A | 1 | |
| transp. caravelle | 2009-2011 | 10 | 1 | |
| transp. dropside | 2009-2011 | 10 | 1 | |
| California Camper | 2009-2011 | 10 | 1 | |
| Jetta Vagon 08> | 2008- | 14A | 1 | |
| Scirocco 2.0 | 2008-2014 | 14A | 1 | |
| Audi A3 Sportback | 2008-2013 | 14A | 1 | G1A |
| superb comfort | 2008-2013 | 14A | 1 | |
| octavia ambiente | 2008-2013 | 14A | 1 | |
| Passat CC | 2008-2012 | 14A | 1 | |
| golf 2.0 | 2008-2011 | 14A | 1 | |
| passat estate | 2008-2011 | 14A | 1 | |
| jetta | 2008-2011 | 14A | 1 | |
| caddy panel van | 2008-2010 | 14A | 1 | |
| EOS 2.0 | 2008-2010 | 14A | 1 | |
| Touran 1.9 | 2008-2010 | 14A | 1 | |
| GOLF VARIANT 07> | 2007- | 14A | 1 | |
| GOLF PLUS 08> | 2007- | 14A | 1 | |
| Passat/4Motion 08 | 2007- | 14A | 1 | |
| TIGUAN 08> | 2007- | 10 | 1 | |
| Audi TT Coupe/Roadster 08> | 2007- | 14A | 1 | G1A |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 14A | 1 | G1A |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 14A | 1 | G1A |
| EOS-Cabriolet-Coupe | 2006- | 14A | 1 | |
| JETTA 06> | 2006- | 14A | 1 | |
| TOURAN | 2006- | 14A | 1 | |
| ALTEA 07> | 2006- | 14A | 1 | |
| GOLF PLUS 05> | 2005- | 14A | 1 | |
| JETTA 06> | 2005- | 14A | 1 | |
| New Beetle 06> | 2005- | 14A | 1 | |
| LEON 06> | 2005- | 14A | 1 | G1A |
| Passat/4Motion | 2005-2007 | 14A | 1 | |
| Audi A3/S3/quattro | 2005-2007 | 14A | 1 | G1A |
| TOURAN | 2005-2006 | 14A | 1 | |
| CADDY | 2004- | 14A | 1 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 14A | 1 | |
| TOLEDO 05> | 2004- | 14A | 1 | |
| ALTEA | 2004-2006 | 14A | 1 | |
| TOURAN | 2003-2005 | 14A | 1 | |
| GOLF | 2003-2005 | 14A | 1 | |
| Audi TT Coupe/Roadster | 2002-2006 | 14A | 1 | G0R |
| New Beetle | 2001-2005 | 14A | 1 |
Other markets (36)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Taos 1.4 | 2020-2024 | 2 | 1 | |
| Viloran | 2020-2022 | 35 | 1 | |
| Audi Q3 2.0 | 2019- | 35 | 1 | |
| Teramont X | 2019-2021 | 35 | 1 | |
| Tayron | 2018- | 35, 10 | 1 | |
| CC Fastback | 2018- | 10 | 1 | |
| Passat | 2018-2022 | 10 | 1 | |
| Jetta 1.4 | 2017-2024 | 2 | 1 | |
| Kodiaq | 2017-2022 | 10 | 1 | |
| Audi A3 Limousine 2.0 | 2017-2021 | 10 | 1 | |
| Magotan 2.0 | 2016- | 10 | 1 | |
| Tiguan | 2016-2023 | 10, 35 | 1 | |
| Tiguan 2.0 4Motion | 2016-2022 | 2, 20 | 1 | |
| Teramont | 2016-2021 | 35 | 1 | |
| Audi Q3 quattro 2.0 | 2016-2019 | 14A | 1 | G1A |
| Touran | 2015-2024 | 10 | 1 | |
| Superb NF | 2015-2023 | 10 | 1 | |
| New Passat | 2015-2022 | 20 | 1 | |
| Audi A3 Limousine 2.0 | 2015-2016 | 19 | 1 | |
| Audi A3 Sportback 1.4 | 2014- | 10 | 1 | |
| Lamando | 2014-2022 | 10 | 1 | |
| Sagitar | 2014-2019 | 14A | 1 | |
| golf 1.4 | 2013-2020 | 10 | 1 | |
| Sagitar | 2011- | 14A | 1 | |
| New Passat | 2011-2019 | 14A, 10 | 1 | |
| New Passat | 2011-2015 | 14A | 1 | |
| Magotan 1.4 | 2011-2012 | 14A | 1 | |
| Tiguan | 2009-2019 | 14A | 1 | |
| MAGOTAN (PASSAT) 07> | 2007- | 14A | 1 | |
| Golf/Rabbit 08> | 2007- | 14A | 1 | |
| OCTAVIA "CN."07> | 2007- | 14A | 1 | |
| Jetta "USA"05> | 2005- | 14A | 1 | |
| POLO HATCH "ZA"06> | 2005- | 2 | 1 | |
| Golf/Rabbit | 2005-2007 | 14A | 1 | |
| Golf 'R32' n. "USA" | 2004-2004 | 14A | 1 | |
| 3C0 platform | 14A | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3C0 platform | 14A | 1 |
Listed without a diagram position (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| B-Main SUV | 2022- | 1 | ||
| 30G platform | 1 |
