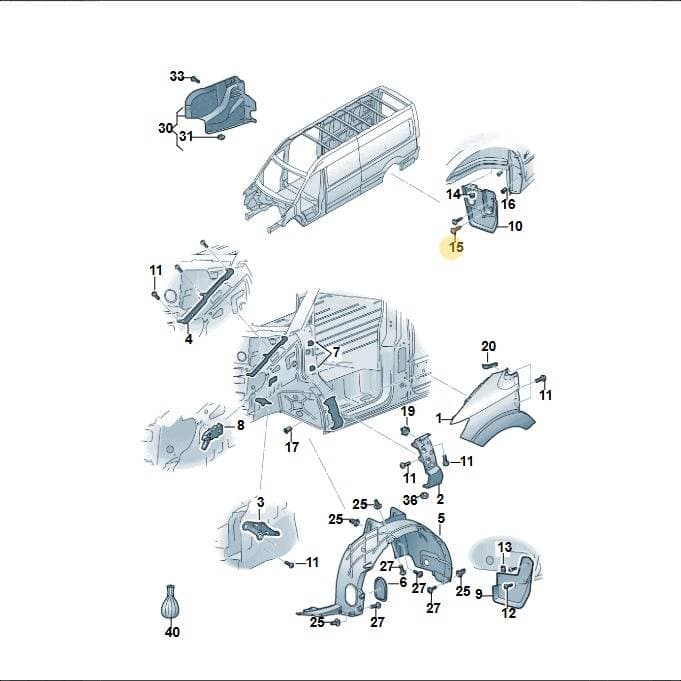

Number 15 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Self-Tapping Bolt, part number N91067002. This fastener is designed to secure body panels and other components by creating its own threads within the material it is installed into. It is a common type of fastener used in vehicle assembly for its efficiency and reliability. Genuine OEM bolts ensure the correct thread pitch and material strength for secure and lasting connections.
Catalogue entry: SCREW 5X25 ×2.
Technical details
- Category
- Underbody & Splash Shields
- Country of origin
- Poland
- Customs (HS) code
- 73181491
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.2 × 2.2 × 2.8 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 5x25
- Thread
- M8x20 mm
- Dimensions
- 5x16.5x11
Equipment codes
- 1X2
- K4G
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
11 vehiclesHex Hd Self-tap Bolt (combi) — locate N91067002 Volkswagen Self-Tapping Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly48
- 1Trim 7LA825206C
- 1Trim 7LA825206D
- 1Trim 7LA825206E
- 2Part 7H0825555A
- 4Washer N90335004
- 6Part N90959101
- 8Bungs 7LA825962A
- 8Bungs 7LA825962B
- 8Bungs 7LA825962C
- 10Trim 7LA825210B
- 10Trim 7LA825210C
- 11Trim 7LA825312D
- 11Trim 7LA825312F
- 11Trim 7LA825312E
- 11Trim 7LA825312G
- 14Bracket 7H0804286B
- 15Pop Rivet N90923602
- 18Trim 7LA825191A
- 18Trim 7LA825191B
- 19Washer N90796502
- 25Trim 7E0825215
- 25Trim 7E0825215A
- 25Trim 7LA825215
- 30Trim 7E0825217
- 30Trim 7LA825217
- 35Trim 7LA825193B
- 35Trim 7LA825193C
- 35Trim 7LA825193D
- 38Part N90927801
- 39Bolt N10009506
- 40Spring Rivet N90558401
- 45Bracket 7E0203507F
- 46Bolt N91193701
- 47Bracket 7E0825227A
- 48Collar Nut N90798805
- 50Trim 7LA825205B
- 50Trim 7LA825205E
- 50Trim 7LA825205F
- 50Trim 7LA825205G
- 50Trim 7LA825205K
- 50Trim 7LA825205L
- 52Collar Nut WHT000713
- 56Trim 7LA825101B
- 56Trim 7LA825101C
- 56Trim 7LA825101D
- 56Trim 7LA825101F
- 62Bungs 7LA825967B
- 62Bungs 7LA825967C
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| transport. multivan | 2019-2024 | 12 | 5 | ||
| caravelle | 2019-2024 | 12 | 5 | ||
| Single-cab transp. | 2019-2024 | 13 | 4 | ||
| E-Crafter 35 | 2018-2024 | 25 | X | ||
| MAN TGE 55 | 2016-2021 | 15, 16, 13 | 2 | ||
| MAN TGE 35 | 2016-2021 | 23, 36 | 4 | PR:K4G+1X2 | 1X2 |
| caravelle | 2015-2019 | 12, 6 | 8 | K4J | |
| Single-cab transp. | 2015-2019 | 16 | 1 | ||
| California Camper | 2015-2019 | 12, 6 | 6 | ||
| transp. caravelle | 2011-2015 | 16, 6 | 8 | K4J | |
| California Camper | 2011-2015 | 12, 6 | 3 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
N91067002 Volkswagen Self-Tapping Bolt | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; E-Crafter 35 2018-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; transp. caravelle 2011-2015; California Camper 2011-2015.
