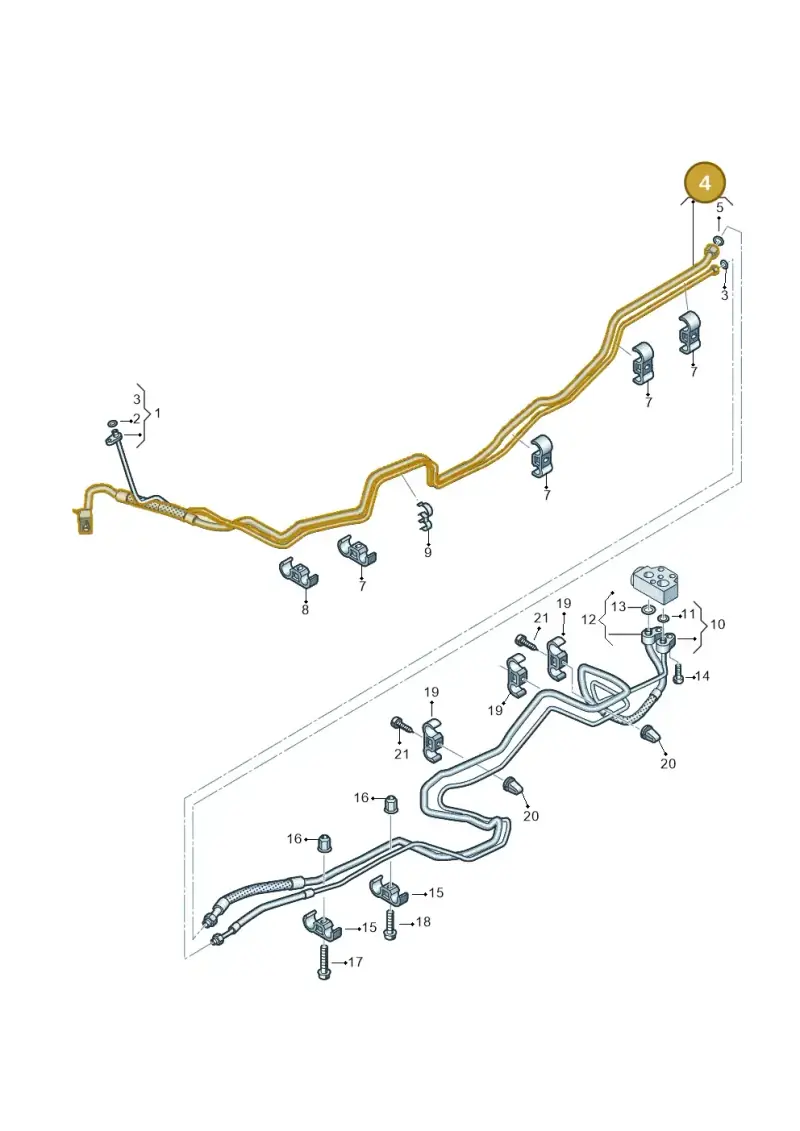

Number 4 marks the part’s position in the exploded view (Volkswagen Transporter Multivan (2019-2024)).
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 7L2816886. Fits Volkswagen Caravelle (2019-2024), Volkswagen Transporter Multivan (2019-2024). Shown as position 4 in the fuel, exhaust and cooling diagram 861260600.
Catalogue entry: LINE front RHD.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Volkswagen 861260600, position 4
- ETKA group
- 2 / 60 (260)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 8Z4
- 8Z5
- 8Z7
- KK3
- L0R
- 8Z6
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesRefrigerant Line — locate 7L2816886 Volkswagen Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Line 7L2816885
- 1Line 7L2816885B
- 1Line 7L2820885
- 1Line 7E1816885
- 1Line 7E1820885B
- 2Seal Ring 3D0260749C
- 2Seal Ring 4D0260749B
- 3Seal Ring 7H0820896
- 4Line 7L2816886A
- 4Line 7L2820886
- 4Line 7E1816886
- 4Line 7E1820886C
- 5Seal Ring 8E0260749D
- 7Clip 7E0820775
- 8Clip 7E0820774A
- 9Dbl Clip N10262701
- 10Line 7E3816732
- 10Line 7E3820887E
- 10Line 7E1816732
- 10Line 7E1820887E
- 12Line 7E3816733
- 12Line 7E3820888E
- 12Line 7E1816733
- 12Line 7E1820888E
- 13Seal Ring 4E0260749B
- 14Screw N10414402
- 16Part N90252104
- 17Screw N10247504
- 18Screw N10300804
- 19Clip 7E0820255
- 20Part WHT004694
- 21Screw N10657001
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| transport. multivan | 2019-2024 | 4 | 1 | PR:KK3+8Z4, |
| caravelle | 2019-2024 | 4 | 1 | PR:KK3+8Z4, |
The manufacturer’s catalogue lists this part number as fitted until 19 October 2020; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
7L2816886 Volkswagen Refrigerant Line is fitted on: transport. multivan 2019-2024; caravelle 2019-2024.
