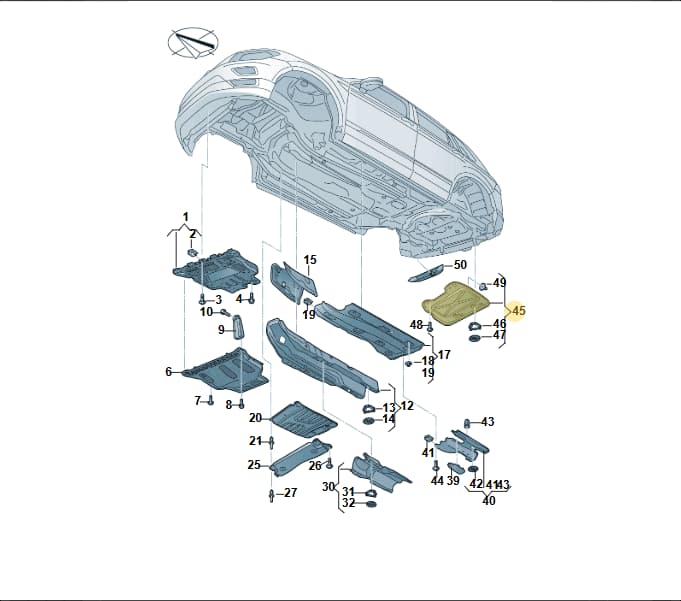

Number 45 marks the part’s position in the exploded view.
Product overview
Genuine OEM SEAT Heat Shield, part number 5QF825701D. This heat shield is designed to protect the rear silencer from excessive heat generated by the exhaust system. It is positioned in the underbody assembly, specifically around the rear silencer. Constructed from metal for durability and heat resistance. Genuine OEM heat shields ensure precise fitment and optimal thermal protection, preventing damage to surrounding components.
Catalogue entry: HEAT SH..
Technical details
- Category
- Underbody & Splash Shields
- Country of origin
- Germany
- Customs (HS) code
- 87082990
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 78 × 52 × 7.5 cm
- Shipping weight
- 0.44 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1A5
- 1A6
- 1A7
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleHeat Shield For Rear Silencer — locate 5QF825701D SEAT Heat Shield | Rear Silencer in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Insulation 5QF825235
- 1Insulation 5QF825235B
- 1Insulation 5QF825235C
- 1Insulation 5QF825236A
- 2Part N90959101
- 3Bolt N90974701
- 4Bolt WHT000729A
- 6Underrun 5QF825901A
- 6Underrun 5QF825902A
- 8Bolt N0195307
- 9Bracket MtRight5Q0825922A
- 9Bracket MtLeft5Q0825921
- 10Bolt N10574702
- 12Heat Sh 5QF825662D
- 12Heat Sh 5QF825661D
- 13Washer WHT003386
- 14Washer N90335004
- 15Insulation 5QA825635
- 17TrimRight5QF825202C
- 17TrimLeft5QF825201C
- 17TrimLeft5QF825201G
- 18Collar Nut WHT000713
- 20Trim 5Q0825230J
- 20Trim 5QA825230
- 21Spring Rivet WHT008023
- 27Spring Rivet N91245101
- 30Heat Sh 5QA825613A
- 35ProtectionLeft5QF825913A
- 35ProtectionLeft5QF825913B
- 35ProtectionRight5QF825914A
- 36Bolt N91069802
- 38Collar Nut N10435508
- 39Bungs 5QA825961A
- 40TrimLeft5QF825101A
- 40TrimRight5QF825102B
- 40TrimRight5QF825102C
- 40TrimLeft5QF825206A
- 43Part WHT003491
- 45Heat Sh 5QF825701F
- 50Trim 5QA825189A
- 50TrimLeft5QF825189
- 50TrimRight5QF825189A
- 50Trim 5QA825189
- 54Bolt N90737107
- 58Bolt N91166401
- 60Part N10772801
Vehicle fitment table5
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2017-2024 | 45 | 1 | PR:1A5,1A6, |
Listed without a diagram position (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 | 2023- | 45 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 45 | 1 | PR:0K0+1A5, | |
| Tayron | 2018- | 45 | 1 | 0K0 | |
| Tiguan 2.0 4Motion | 2016-2022 | 30 | 1 | D |
Diagrams & fitment data powered by oemdiagrams.com
5QF825701D SEAT Heat Shield | Rear Silencer is fitted on: Tiguan 2.0 4Motion 2017-2024.
