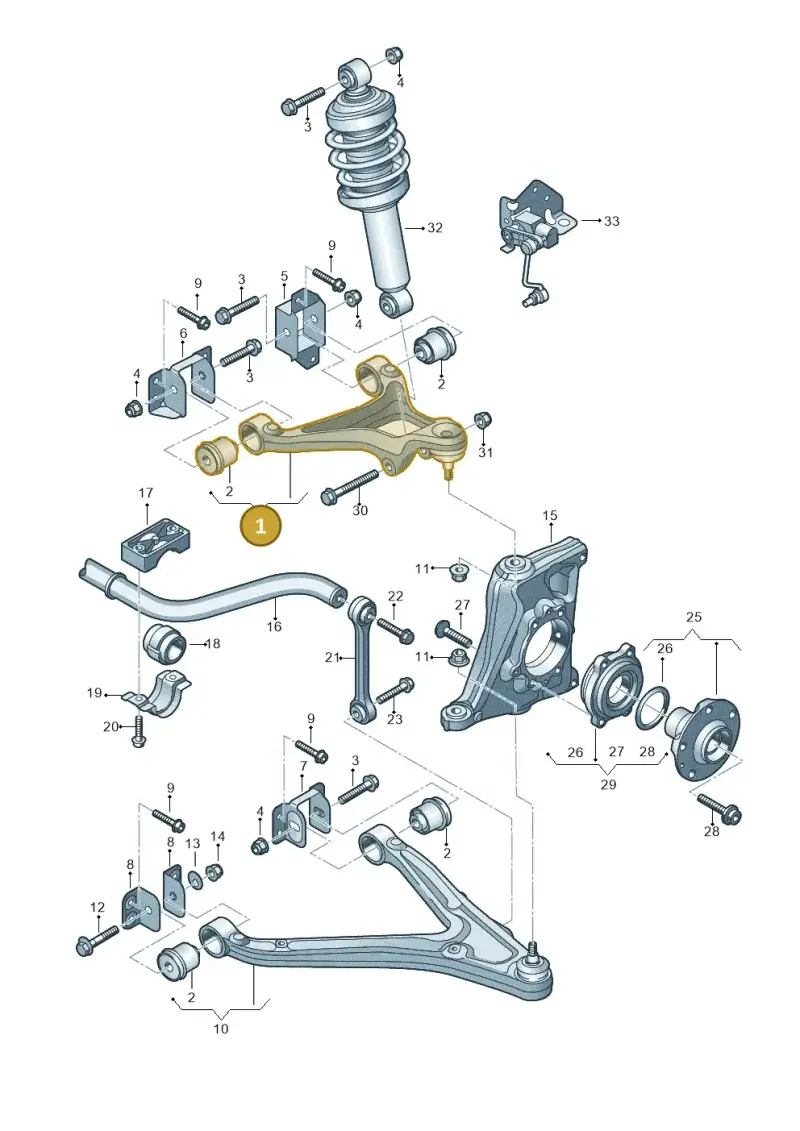

Number 1 marks the part’s position in this exploded view (Audi R8 qu. 5.2 (2012-2015)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Transverse Arm, part number 420407505E. This suspension component connects the wheel hub to the vehicle chassis, allowing for steering and absorbing road impacts. It is a critical part of the front suspension assembly. The approximate dimensions are 0.296m x 0.295m x 0.102m. Genuine OEM parts ensure precise alignment, optimal handling, and long-term durability.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87088099
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29.6 × 29.5 × 10.2 cm
- Shipping weight
- 2.18 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesWishbone — locate 420407505E Audi Transverse Arm | Suspension in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly34
- 1WishboneRight420407506E
- 2Rubber Bush 8E0505185P
- 3Bolt N10428002
- 3Bolt N10628301
- 4Collar Nut N10106402
- 5BracketRight420407458B
- 5BracketLeft420407457B
- 6BracketRight420407458F
- 6BracketLeft420407457F
- 7BracketRight42B407458C
- 7BracketLeft42B407457C
- 8Bracket 42B407457B
- 9Screw N10689301
- 10WishboneRight420407152K
- 10WishboneLeft420407151K
- 11Collar Nut WHT004898
- 12Bolt WHT002262
- 13Washer WHT001676
- 15HousingRight420407246F
- 15HousingLeft420407245F
- 16Anti-roll 420411309
- 17Bracket 420411031A
- 18Rubber Bush 4D0411327J
- 19Clamp 4D0411336G
- 20Screw N10682501
- 21Coupl Rod 420407465
- 22Bolt N10699901
- 23Bolt N10314506
- 25Wheel Hub 4D0407613E
- 26Seal 4D0407623B
- 27Ball Screw WHT000237A
- 28Bolt 4B0407643A
- 29Wheel Bear 4F0498625B
- 30Bolt N10629501
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi R8 qu. 5.2 | 2012-2015 | 1 | 1 |
| Audi R8 08> | 2007- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
420407505E Audi Transverse Arm | Suspension is fitted on: Audi R8 qu. 5.2 2012-2015; Audi R8 08> 2007-.
