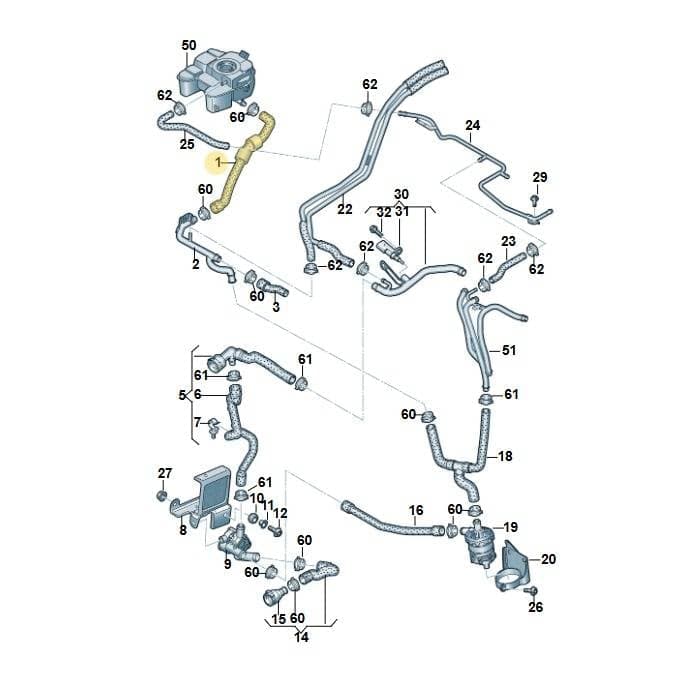

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 3Q0122109. Shields sensitive engine components from high temperatures generated during operation. This sleeve is part of the engine cooling system. Genuine OEM quality ensures proper fit and effective protection, critical for the longevity of engine components.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 32.5 × 10 × 5.5 cm
- Shipping weight
- 0.11 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesCoolant Hose — locate 3Q0122109 Volkswagen Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 2Water Pipe 3Q0121070M
- 3Hose 3Q0121109
- 5Hose 3Q0122051AB
- 5Hose 3Q0122051AR
- 6Hose 3Q0122101AC
- 6Hose 3Q0122101AS
- 7Cable Tie 3W0971838
- 8Bracket 3Q0121093J
- 9Control Unit 03N906249B
- 9Control Unit 03N906249C
- 10Grommet 046131887
- 11Spacer 052129734
- 12Bolt N90780904
- 14Hose 3Q0122101AJ
- 15Coupl Piece 3B0122291B
- 16Hose 3Q0122101AH
- 18Hose 3Q0122058B
- 19Pump 7P0965567
- 20Bracket 3Q0121093AA
- 22Hose 03N121444B
- 23Hose 3Q0122447J
- 24Water Pipe 3Q0121070G
- 25Hose 3Q0122447K
- 26Screw N10698101
- 27Bolt N90737107
- 30Hose 03N121060J
- 31Sender 03F919501B
- 32Bolt N10653201
- 60Clamp N90687001
- 61Clamp N90686902
- 62Clamp N90686701
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Arteon | 2017-2023 | 1 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 1 | 1 |
| Kodiaq | 2016-2024 | 1 | 1 |
| Passat saloon | 2014-2024 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
3Q0122109 Volkswagen Heat Protection Sleeve | Genuine OEM is fitted on: Arteon 2017-2023; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Passat saloon 2014-2024.
