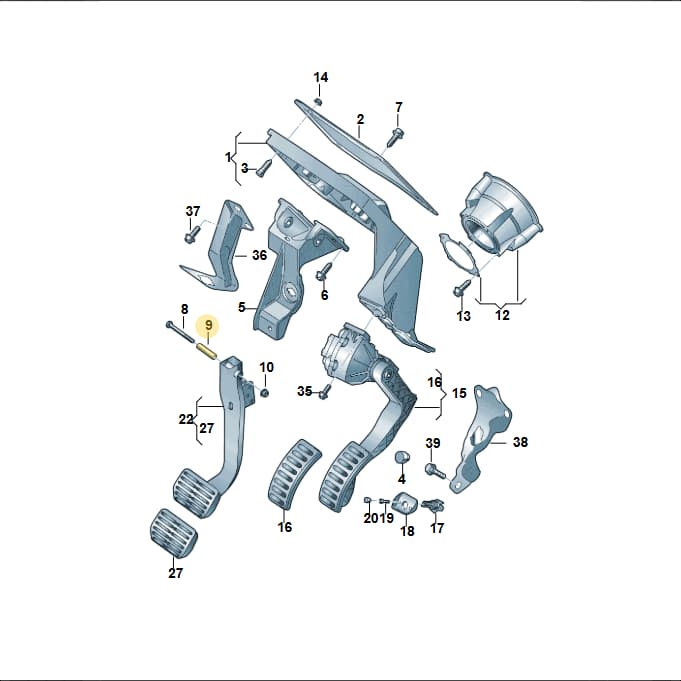

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Guide Sleeve, part number 3D1721561B. This guide sleeve is part of the pedal assembly, ensuring smooth and precise movement of the clutch or brake pedal. It is located within the pedal mechanism. Constructed from durable plastic for reliable performance. Genuine OEM parts ensure the correct fit and function for smooth pedal operation and driver comfort.
Technical details
- Category
- Steering
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6 × 1.3 × 1.3 cm
- Shipping weight
- 0.04 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesGuide Bush — locate 3D1721561B Volkswagen Guide Sleeve | Pedals in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Bracket 3D1721111A
- 1Bracket 3D2723111A
- 1Bracket 3D1723111E
- 2Seal 3D2723410
- 2Seal 3D1721043C
- 4Stop 7M0721193
- 5Mounting 3D1721196D
- 6Screw N91141901
- 8Bolt N10610001
- 9Part 3D2723545
- 10Collar Nut N02300313
- 12Sleeve 3D0612357A
- 15Accel Ped 3D1721503L
- 15Accel Ped 3D1721503M
- 15Accel Ped 3D1721503N
- 15Accel Ped 3D1721503P
- 15Accel Ped 3D2723503C
- 15Accel Ped 3D2723503D
- 15Accel Ped 3D2723503E
- 15Accel Ped 3D2723503F
- 16Ap Cap For Accelerator Pedal Cap For 8N2721647B
- 16Ap Cap For Accelerator Pedal Cap For 8N1721647B
- 17Stop 4E0721522A
- 18Rosette 3D2723528B
- 18Rosette 3D2723528C
- 18Rosette 3D1723528B
- 19Bolt N10430103
- 20Part 3D1723529
- 22Pedal 3D1721139E
- 22Pedal 3D2723150
- 22Pedal 3D1723139
- 27Ap Cap For Foot Brake Pedal Cap For Foot Brake 3D1723173A
- 27Ap Cap For Foot Brake Pedal Cap For Foot Brake 3D2723173A
- 27Ap Cap For Foot Brake Pedal Cap For Foot Brake 3D1721173
- 35Screw N90771601
- 36Support 3D2723673
- 37Bolt N10714801
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 9 | 1 | L0L |
| phaeton 4motion | 2008-2010 | 9 | 1 | L0L |
| PHAETON 08> | 2007- | 9 | 1 | L0L |
| Audi A8/S8/qu. lang 08> | 2007- | 9 | 1 | L0L |
| Audi A8/S8/qu. lang | 2003-2007 | 9 | 1 | L0L |
| Phaeton (lang) | 2003-2006 | 9, 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
3D1721561B Volkswagen Guide Sleeve | Pedals is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006.
