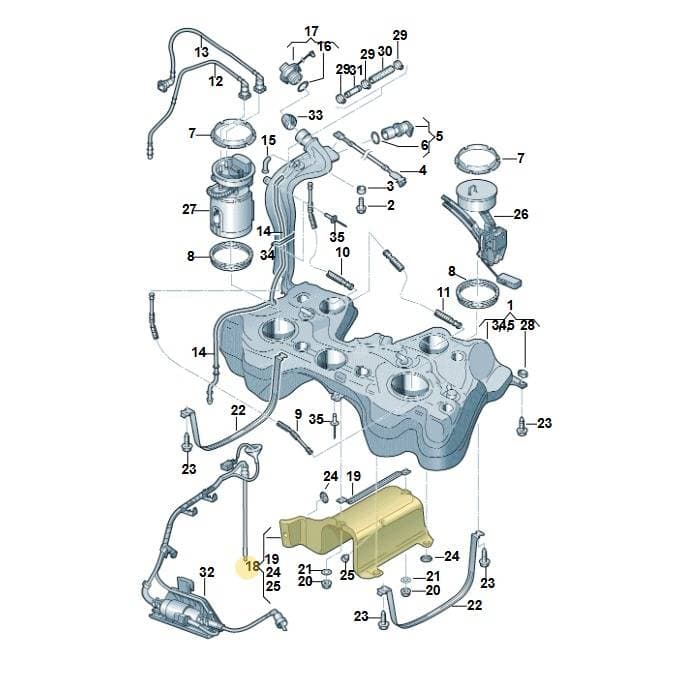

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield Plate, part number 1K0201307H. This heat shield is designed to protect vehicle components from excessive heat generated by the exhaust system or engine. It is located under the fuel tank assembly. The plate is made of metal and has a specific contour for proper fitment. Genuine OEM parts are crucial for heat shields to ensure they are made from the correct materials and have the precise shape to effectively deflect heat without compromising structural integrity or airflow.
Catalogue entry: HEAT SH.; for models with.
Fitted with: 1K0201307F HEAT SH., N91130801 COLLAR NUT, N90057703 WASHER.
Technical details
- Category
- Exhaust
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40 × 25 × 10 cm
- Shipping weight
- 1.09 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1D7
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesHeat Sh — locate 1K0201307H Volkswagen Heat Shield Plate | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Fuel Tank 1K0201060GB
- 1Container 1K0201060GE
- 2Bolt N10189403
- 3Bush 1J0201048C
- 4Line 1J0201142A
- 9Line 1K0201995E
- 10Line 1K0201993S
- 11Line 1K0201993AA
- 11Line 1K0201993R
- 14Part 1K0201931D
- 15End Piece 895201890
- 16Seal Ring 1K0201557
- 17Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AB
- 17Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550S
- 18Heat Sh 1K0201307F
- 20Collar Nut N90200201
- 21Washer N90057703
- 22Strap 1K0201655B
- 23Bolt N0195308
- 24Washer N90796502
- 28Bush 1K0201048A
- 29Clip N10199201
- 31Sleeve 191201316A
- 32Metering 1K0201607G
- 32Metering 1K0201607Q
- 33Ins Piece 1K0201112E
- 33Ins Piece 1K0201112D
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2013-2013 | 18 | 1 | ||
| Altea XL Reference | 2010-2013 | 18 | |||
| golf estate | 2009-2013 | 18 | 1 | ||
| Audi A3 Sportback | 2008-2013 | 18, 17 | 1 | PR:1D2 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 18 | 1 | BWA,BPY+ | T59 |
| GOLF VARIANT 07> | 2007- | 18 | 1 | ||
| Audi A3/S3/quattro | 2005-2007 | 18 | 1 | AXX | T59 |
Diagrams & fitment data powered by oemdiagrams.com
1K0201307H Volkswagen Heat Shield Plate | Genuine OEM is fitted on: Altea XL Reference 2013-2013; Altea XL Reference 2010-2013; golf estate 2009-2013; Audi A3 Sportback 2008-2013; Audi A3/S3/Sportb./qu. 08 2007-; GOLF VARIANT 07> 2007-; Audi A3/S3/quattro 2005-2007.
