Genuine OEM Volkswagen Transmission Oil Pan, part number 09G321361D. This pan is a critical component designed to hold and protect the transmission fluid, which lubricates and cools the transmission's internal parts. It is located at the bottom of the transmission assembly. The pan features a black finish, measures approximately 0.33m in length, and weighs 1.282 kg. Using a genuine OEM oil pan ensures the correct fluid capacity, proper sealing surface, and durable construction for reliable transmission operation.
Catalogue entry: OIL SUMP.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Japan
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33 × 27 × 6.5 cm
- Shipping weight
- 1.28 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Gearbox codes
- QBT, SGL
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

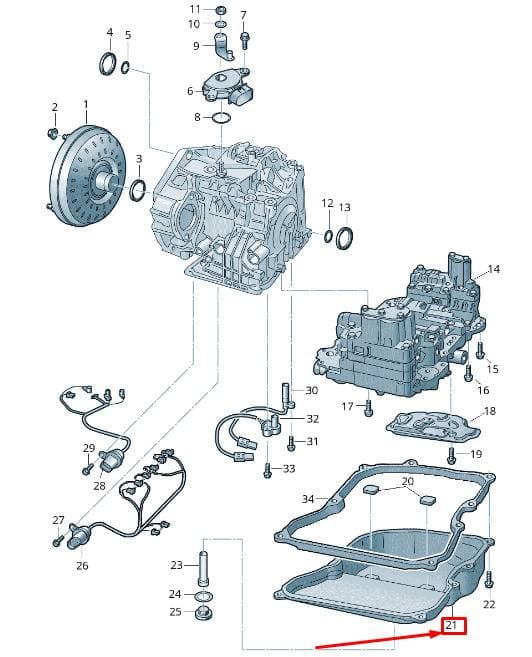

58 vehiclesTransmission Oil Sump — locate 09G321361D Volkswagen Transmission Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Converter 09G323571AC
- 1Converter 09G323571AE
- 2Part N10169201
- 3Seal Washer 09K321243
- 4Seal 09G301189
- 5Seal Ring 09G409528
- 6Switch 09G919823
- 7Bolt WHT000325A
- 8Seal Washer 09D321199
- 9Lever 09G321171A
- 10Washer WHT000304
- 11Part WHT000303
- 14Valve Body 09G325039J
- 14Valve Body 09G325039K
- 15Bolt WHT000307
- 16Bolt WHT000313
- 17Bolt WHT000311
- 18Strainer 09G325429E
- 18Strainer 09G325429H
- 19Screw WHT001866
- 20Magnet 09D321368
- 21Oil Sump 09G321361F
- 22Bolt WHT000309
- 23Oil Pipe 09P321363
- 24Seal Ring 09D321181B
- 25Screw WHT000310A
- 26Wiring Set 09G927363F
- 27Bolt WHT000314
- 28Wiring Set 09G927363E
- 28Wiring Set 09G927363G
- 30Sender 09G927321D
- 31Bolt WHT000308
- 32Sender 0C8927321
- 33Bolt WHT000315
- 34Seal 09G321370
- 35Adapter 09G301469A
- 35Pipe 09G301472S
- 36Lever 09G321175
- 37Plate 09G321381
- 38Part WHT001425
Vehicle fitment table58
Europe (21)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| fabia | 2021- | 21 | 1 | PR:T5I+G1A | G1A |
| Kamiq | 2019- | 21 | 1 | ||
| Leon style | 2019- | 21 | 1 | ||
| Golf 2.0 BlueMotion | 2019-2024 | 21 | 1 | ||
| Octavia | 2019-2024 | 21 | 1 | ||
| Arona FR | 2017- | 21 | 1 | ||
| Ibiza FR | 2017- | 4 | 1 | ||
| Octavia | 2017-2020 | 21 | 1 | ||
| golf 2.0 | 2016-2020 | 21 | 1 | ||
| Leon ST Stylance | 2016-2020 | 21 | 1 | ||
| Ibiza Stylance | 2015- | 4 | 1 | ||
| golf 1.6 | 2015-2019 | 4 | 1 | ||
| Toledo Reference | 2015-2019 | 4 | 1 | ||
| fabia | 2014-2022 | 4 | 1 | ||
| Jetta 1.6 | 2014-2018 | 4 | 1 | QBT,SGL | |
| Polo 1.4 BlueMotion | 2014-2017 | 4 | 1 | ||
| Golf Estate | 2013-2017 | 4 | 1 | QNQ,SGN | |
| Rapid | 2012-2022 | 4 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 4 | 1 | QNQ,SGN | |
| Octavia | 2012-2017 | 4, 21 | 1 | QNQ | |
| Leon ST Stylance | 2012-2016 | 4 | 1 |
Other markets (37)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Lavida XR | 2023- | 4 | 1 | ||
| Virtus 1,0 | 2022- | 21 | 1 | PR:T5I+G1A | G1A |
| Taigun 1.0 | 2021- | 21 | 1 | PR:5PS+T5I+ | |
| Polo 1.6 | 2020-2022 | 21 | 1 | ||
| T-Cross | 2019- | 4 | 1 | ||
| Polo | 2019- | 4 | 1 | ||
| jetta | 2019- | 4 | 1 | ||
| T-Cross 1,0 | 2019- | 4 | 1 | TAX,UZH | |
| T-Cross | 2019-2024 | 4 | 1 | ||
| bora | 2018- | 4 | 1 | ||
| New Lavida | 2018-2023 | 4 | 1 | ||
| Kamiq | 2018-2023 | 4 | 1 | ||
| Polo Vivo | 2017- | 21 | 1 | ||
| Jetta 1.4 | 2017-2024 | 21 | 1 | SGN | |
| C-Trek 1.5 | 2016- | 4 | 1 | ||
| Voyage | 2016-2023 | 4 | 1 | TBA | |
| bora | 2015- | 4 | 1 | ||
| Gol 1.6 | 2015-2023 | 4 | 1 | TBA | |
| New Lavida | 2015-2022 | 4 | 1 | ||
| Polo 1.6 | 2015-2020 | 4 | 1 | PLS,SGR | |
| Golf Sportsvan 1.4 | 2015-2020 | 4 | 1 | QN | |
| Gran Santana | 2015-2019 | 4 | 1 | ||
| Gran Lavida | 2015-2018 | 4 | 1 | ||
| Fabia NF HB | 2015-2018 | 4 | 1 | ||
| Octavia | 2014-2023 | 4 | 1 | QN | |
| Polo | 2014-2022 | 4 | 1 | STT,TAU | |
| Rapid Spaceback | 2014-2022 | 4 | 1 | ||
| Sagitar | 2014-2019 | 4 | 1 | ||
| Polo 1.6 | 2013-2022 | 4 | 1 | STT | |
| golf 1.4 | 2013-2020 | 4 | 1 | QN | |
| santana | 2012-2023 | 4 | 1 | PL | |
| Rapid | 2012-2023 | 4 | 1 | PL | |
| Jetta 1.6 | 2012-2019 | 4 | 1 | ||
| Rapid Ambition | 2011-2021 | 4 | 1 | STT,TAU | |
| New Polo (SVW) | 2010-2019 | 4 | 1 | ||
| POLO HATCH "ZA"06> | 2005- | 21 | 1 | ||
| GOLF "ZA." | 2005-2007 | 4 | 1 | QN |
