Target · Diagram
Find this reference above

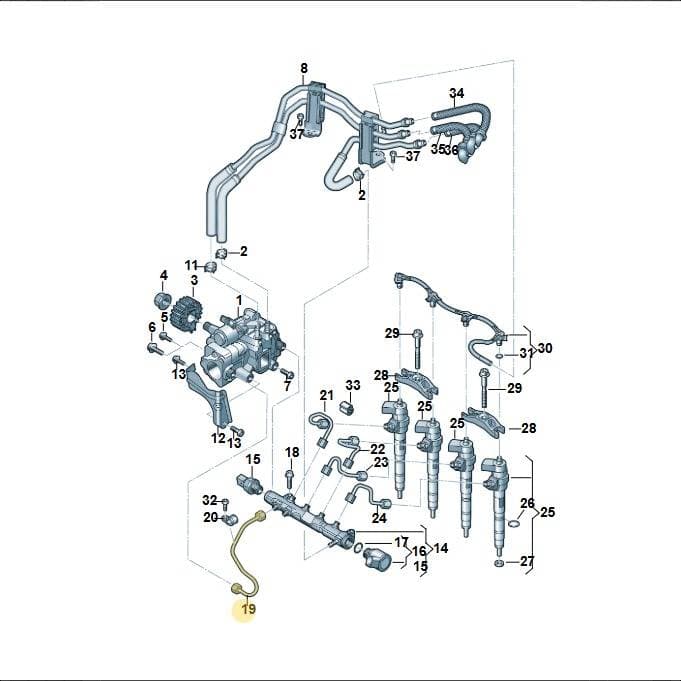

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Pressure Pipe, part number 04L130321F. This pipe carries high-pressure fuel from the pump to the fuel injectors. It is located at position 19 in the diagram. Genuine OEM pressure pipes are manufactured to withstand extreme pressures and ensure leak-free operation.
Catalogue entry: PIPE.
Fitted with: 04L130755L PUMP, N91208604 CLAMP, WHT002244 COLLAR NUT, N10672001 SCREW, N10665001 BOLT, N10714501 SCREW, 4B0422379 CLAMP, N91203201 BOLT.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 18 × 10 × 4 cm
- Shipping weight
- 0.08 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesPressure Pipe — locate 04L130321F Volkswagen Pressure Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Pump 04L130755L
- 2Clamp N91208604
- 3Pulley 04L130101
- 4Collar Nut WHT002244
- 5Screw N10672001
- 6Bolt N10665001
- 7Screw N10714501
- 8Fuel Line 04L130308G
- 11Clamp 4B0422379
- 12Bracket 04L130169
- 13Bolt N91203201
- 14Rail 03N130093E
- 14Rail 03N130093G
- 14Rail 04L130093A
- 15Part 03N906054C
- 15Sensor 05L906054A
- 16Valve 04L130764E
- 17Seal Ring WHT008239
- 18Screw N91128701
- 19Pipe 03N130321F
- 20Clamp N91171101
- 21Pipe 03N130301C
- 21Pipe 05L130301
- 22Pipe 03N130302C
- 22Pipe 05L130302A
- 23Pipe 03N130303C
- 23Pipe 05L130303
- 24Pipe 03N130304C
- 24Pipe 05L130304
- 25Injector 03N130277L
- 25Injector 03N130277N
- 25Injector 04L130277BE
- 25Injector 04L130277BH
- 26Seal Ring WHT000884
- 27Seal Ring 059130519
- 28Clamp Piec 04L130216
- 29Screw WHT008080A
- 30Pipe 04L130235Q
- 31Seal Ring WHT008648
- 32Bolt N10335206
- 33Damper 03L130118
- 37Bolt N10405604
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| transport. multivan | 2019-2024 | 19 | 1 |
| caravelle | 2019-2024 | 19 | 1 |
| Single-cab transp. | 2019-2024 | 19 | 1 |
| MAN TGE 55 | 2016-2021 | 19 | 1 |
| MAN TGE 35 | 2016-2021 | 19 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04L130321F Volkswagen Pressure Pipe | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021.
