036103493BB Vent Hose
€14.66 excl. VAT
- 036103493NNot stocked
Apr 2000 - 036103493BBThis pageNot stocked
Mar 2005 - 036103493EBDiscontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 125 g
- Shipping size (L × W × H)
- 28.9 × 12.2 × 6.8 cm
- Customs (HS) code
- 40094200
Parts diagram & fitment

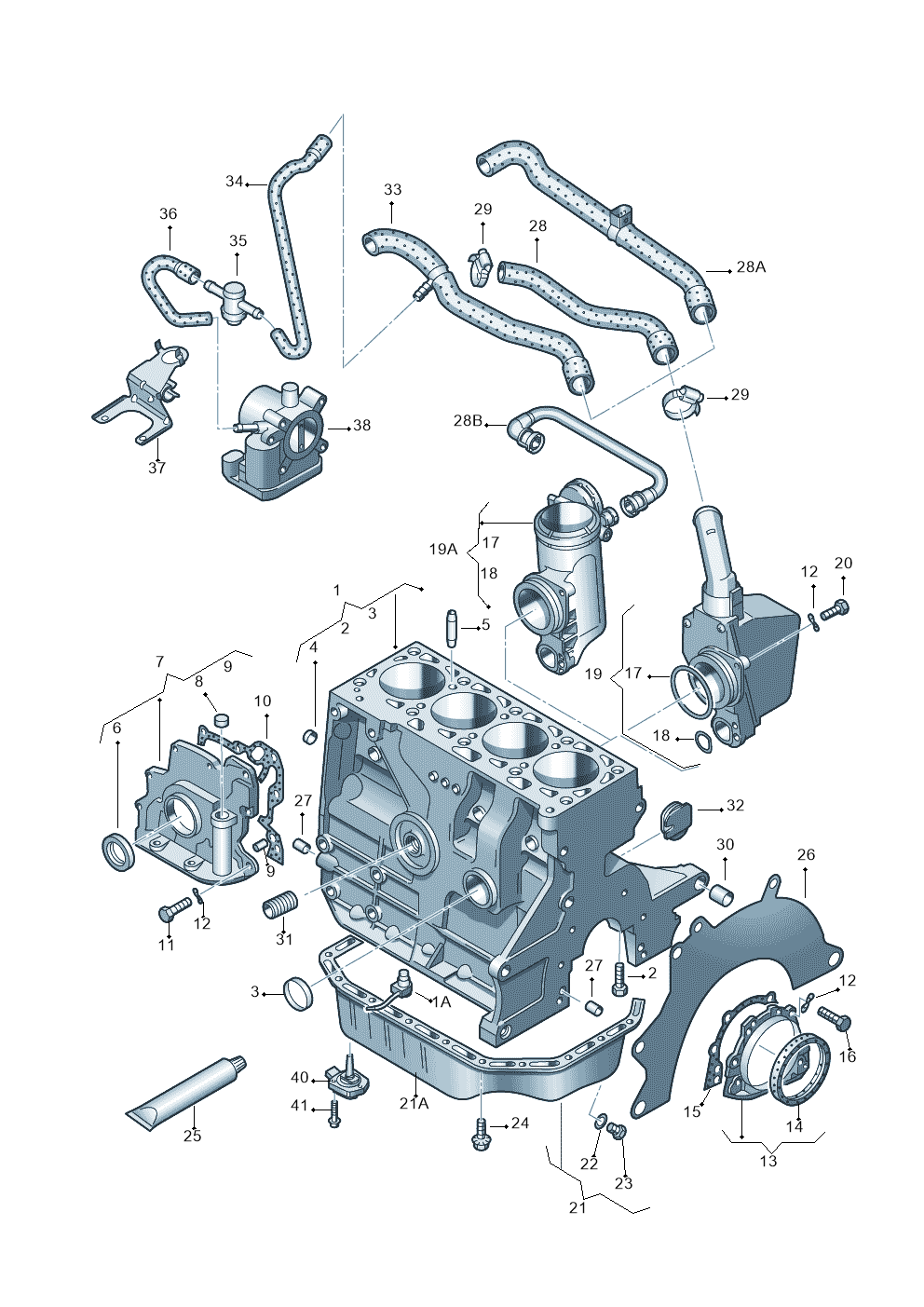

5 vehiclesVent Hose — locate Vent Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Cylinder Block 030103101BC
- 1Cylinder Block 030103101BE
- 1Cylinder Block 030103101BG
- 1Cylinder Block 036103101AN
- 1Cylinder Block 036103101AP
- 1Cylinder Block 036103101AR
- 1Cylinder Block 036103101H
- 1Cylinder Block 030103101BF
- 1AVent 030103157C
- 2Bolt N10263801
- 3Cover 034103113B
- 3Cover N90818701
- 3Cover 036103113A
- 4Cover N0119077
- 5Part 026103139
- 6Seal 036103085H
- 10Seal 032103161K
- 12Washer N0122265
- 13Flange 030103171H
- 13Flange 030103171K
- 16Bolt N0902612
- 16Bolt N90842401
- 17Seal Ring N90617501
- 18Seal Ring 036103677
- 19Separator 036103464G
- 20Screw N10248801
- 20Screw N10190701
- 21Oil Sump 032103601RA
- 21Oil Sump 036103601AB
- 21Oil Sump 030103601J
- 23Bolt N90813201
- 25Seal D176404A2
- 26Spacer Pl 030103551C
- 26Spacer Pl 036103551L
- 27Part N0432072
- 28AHose 036103474L
- 29Clamp N0245065
- 30Sleeve 022103139
- 32Bungs 030103037E
- 33Hose 030103474C
- 34Hose 030103493BP
- 35Valve 030103765
- 36Hose 030103493BQ
- 37Bracket 030103777
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| TOLEDO/LEON/LEON-4 | 2001-2006 | 28 | 1 | AZD | D3H |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 28 | 1 | AZD | D3H |
| Jetta Wagon 02 | 2001-2002 | 28 | 1 | AZD | D3H |
| POLO | 1999-2001 | 28 | 1 | AFK,AUB,AQQ | MP0 |
| POLO | 1994-1999 | 28 | 1 | AFH |
Diagrams & fitment data powered by oemdiagrams.com
Vent Hose is fitted on: TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; POLO 1999-2001; POLO 1994-1999.
