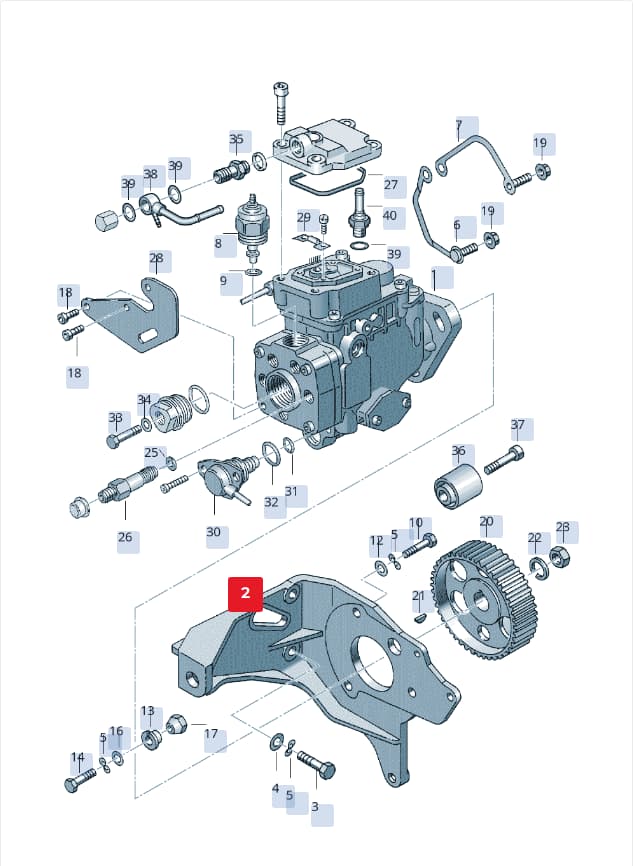

Number 2 marks the part’s position in this exploded view (Volkswagen LUPO/3L TDI (2003-2005)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM VW Fuel Pump Bracket, part number 028130147B. This bracket securely mounts the fuel injection pump to the engine block. Constructed from durable cast metal for long-lasting performance. Ensures proper alignment and stability of the fuel pump.
Technical details
- Category
- Body Interior
- Customs (HS) code
- 84139100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 26 × 17.5 × 15 cm
- Shipping weight
- 2.21 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
46 vehiclesConsole — locate 028130147B VW Fuel Pump Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Pump 028130115M
- 3Screw N10226002
- 5Washer N01224110
- 6Clamp 068130173B
- 7Clamp 068130174
- 8Cutoff 028130135F
- 9Seal 068130139
- 10Bolt N0102695
- 12Washer 111129720
- 13Bush 068130199
- 16Washer N90477301
- 17Part 068130197
- 19Ut Hexagon Nut Self-locking Hexagon Nut N0111849
- 21Spring N0127101
- 22Washer N0122333
- 25Seal Ring 068130787A
- 26Union 028130795G
- 27Seal Ring 028130717A
- 28Support 028130149B
- 29Temperature Sensor 028906040C
- 31Seal Ring 046130684
- 32Seal Ring 046130684A
- 34Seal Ring N0138075
- 35Valve 028130122B
- 36Roller 028109244
- 37Screw N0147172
Vehicle fitment table46
Europe (44)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| LUPO/3L TDI | 2003-2005 | 2 | 1 | MR5 | |
| AROSA | 2003-2004 | 2 | 1 | G0C | |
| POLO | 1999-2001 | 2 | 1 | ||
| Audi A4/Avant | 1999-2001 | 2 | 1 | AHU,AFN,AVG | |
| Audi A4/Av.qu. | 1999-2001 | 2 | 1 | ||
| LUPO/3L TDI | 1998-2003 | 2 | 1 | ||
| GOLF CABRIO | 1998-2001 | 2 | 1 | ||
| Passat syncro/4Motion | 1998-2000 | 2 | 1 | ||
| AROSA | 1997-2003 | 2 | 1 | ||
| Audi A6/Avant | 1997-2001 | 2 | 1 | ||
| Passat | 1997-2000 | 2 | 1 | AHU,AFN,AVG | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 2 | 1 | AFN,AFF,AHU | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 2 | 1 | ||
| ALHAMBRA | 1996-2000 | 2 | 1 | ||
| GOLF VAR./VENTO | 1996-1999 | 2 | 1 | ||
| POLO CLASSIC/VARIANT | 1996-1999 | 2 | 1 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 2 | 1 | ||
| IBIZA/CORDOBA/VARIO | 1996-1999 | 2 | 1 | ||
| Golf | 1996-1997 | 2 | 1 | ||
| Audi A6/Wagon F >4A-W | 1996-1997 | 2 | 1 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 2 | 1 | ||
| INCA (SEAT-VAN) | 1995-2003 | 2 | 1 | ||
| SHARAN/SYNCRO | 1995-2000 | 2 | 1 | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 2 | 1 | ||
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 2 | 1 | ||
| Polo Classic 96 | 1995-1996 | 2 | 1 | ||
| Golf 96 | 1995-1996 | 2 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 2 | 1 | ||
| Audi A6/Wagon 96 | 1995-1996 | 2 | 1 | ||
| POLO | 1994-1999 | 2 | 1 | ||
| Passat | 1994-1997 | 2 | 1 | ||
| Golf Cabrio | 1994-1996 | 2 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 2 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 2 | 1 | ||
| Audi A6/Wagon 95 | 1994-1995 | 2 | 1 | ||
| Audi Cabrio. | 1993-1998 | 2 | 1 | ||
| Golf/Var. syncro | 1993-1997 | 2 | 1 | ||
| Audi 90 | 1993-1995 | 2 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 2 | 1 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 2 | 1 | ||
| Audi 90 93 | 1992-1993 | 2 | 1 | ||
| TOLEDO SEAT | 1991-1996 | 2 | 1 | ||
| GOLF/Ecomatic | 1991-1994 | 2 | 1 | ||
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 2 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 2 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 2 | 1 | AHU |
