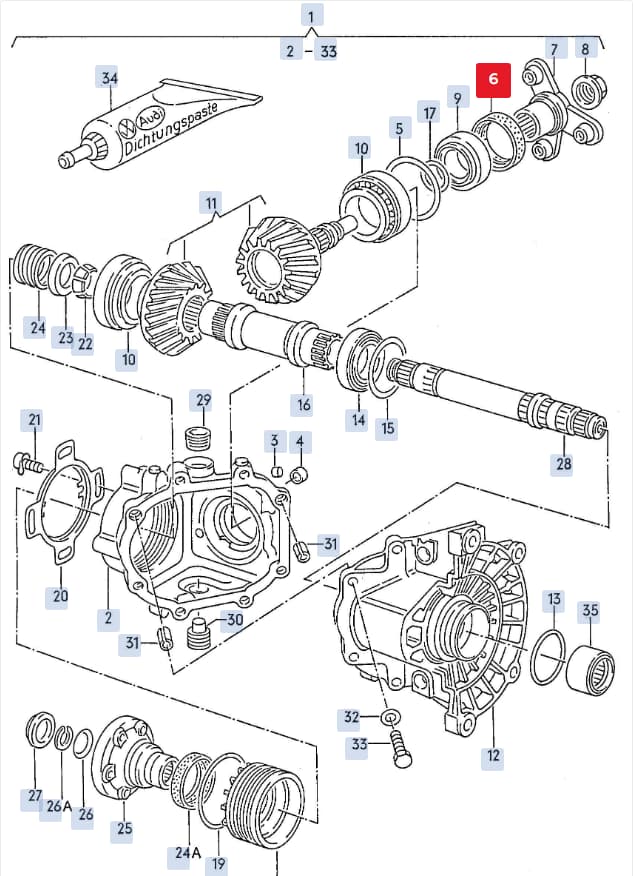

Number 10 marks the part’s position in this exploded view (Volkswagen Passat Var.syncro (1994-1996)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Shaft Oil Seal, part number 020301189H. This oil seal is crucial for preventing lubricant leakage from rotating shafts, typically found in the transmission or drivetrain components. It maintains the integrity of the sealing system, ensuring proper lubrication and preventing contamination. Genuine OEM parts offer the exact fit and material specifications required for reliable sealing.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6.5 × 6.5 × 1 cm
- Shipping weight
- 0.03 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesShaft Oil Seal — locate 020301189H Volkswagen Shaft Oil Seal | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Housing 02C409107C
- 1Housing 02C409107D
- 1Housing 02C409107A
- 1AGearbox 02C409053B
- 3Pinion 02C409126
- 4Bolt N90042201
- 4AWasher N01152527
- 5Seal 084409189B
- 6Seal Ring N90356901
- 7Washer 02C409114B
- 7Washer 02C409114C
- 7Washer 02C409114D
- 7Washer 02C409114E
- 7Washer 02C409114F
- 7Washer 02C409114G
- 7Washer 02C409114H
- 7Washer 02C409114J
- 7Washer 02C409114K
- 7Washer 02C409114
- 8Cover 02C409148A
- 8Cover 02C409148
- 10Seal 020301189T
- 11Seal Ring N90357001
- 12Screw WHT001937
- 13Plug 113301141B
- 14Sleeve 02C409339B
- 15Seal Comp AMV18820003
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Passat Var.syncro | 1994-1996 | 10, 40 | 1 |
| Golf/Var. syncro | 1993-1997 | 10, 40 | 1 |
| Passat syncro | 1991-1993 | 10, 40 | 1 |
| Golf/Jetta syn, Rallye | 1985-1991 | 6, 10, 40 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
020301189H Volkswagen Shaft Oil Seal | Genuine OEM is fitted on: Passat Var.syncro 1994-1996; Golf/Var. syncro 1993-1997; Passat syncro 1991-1993; Golf/Jetta syn, Rallye 1985-1991.
