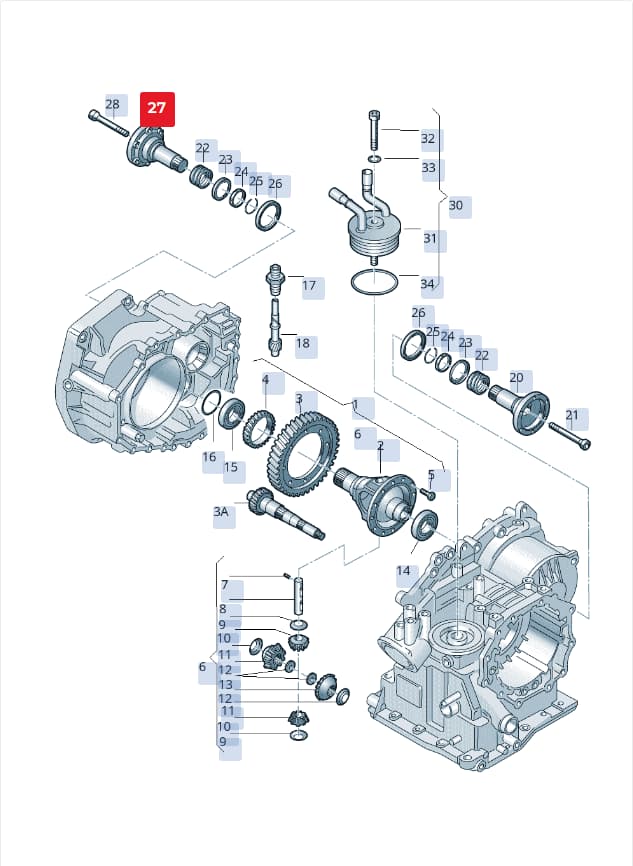

Number 27 marks the part’s position in this exploded view (Volkswagen LUPO/3L TDI (2003-2005)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Flanged Shaft, part number 001409356. This flanged shaft is a critical component within the transmission assembly, ensuring power transfer. It is located within the transmission housing. Manufactured to precise OEM specifications for optimal performance and durability.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11 × 9.5 × 9.5 cm
- Shipping weight
- 0.82 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesFlanged Shaft — locate 001409356 Volkswagen Flanged Shaft | Transmission in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly45
- 1Part 001498081A
- 1Part 001498081B
- 2Housing 001409121
- 4Drivewheel 001409187
- 5Bolt 001409136
- 14Mounting 001409321A
- 15Mounting 001517185
- 16Washer 001409210A
- 16Washer 001409210AA
- 16Washer 001409210AB
- 16Washer 001409210AC
- 16Washer 001409210AD
- 16Washer 001409210AE
- 16Washer 001409210B
- 16Washer 001409210C
- 16Washer 001409210D
- 16Washer 001409210E
- 16Washer 001409210F
- 16Washer 001409210G
- 16Washer 001409210H
- 16Washer 001409210J
- 16Washer 001409210K
- 16Washer 001409210L
- 16Washer 001409210M
- 16Washer 001409210N
- 16Washer 001409210P
- 16Washer 001409210Q
- 16Washer 001409210R
- 16Washer 001409210S
- 16Washer 001409210T
- 16Washer 001409210
- 17Guide 014409193A
- 20FlanshaftLeft001409355A
- 20FlanshaftLeft001409355
- 21Screw 001409359
- 22Press Spring 001409379
- 23Washer 001409378
- 24Ring 001409374
- 26Seal 001409399
- 27FlanshaftRight001409356A
- 28Screw 001409360
- 31Oil Cooler 001409061
- 32Screw 001409067
- 33Seal Ring 001409069
- 34Seal Ring 001409069B
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| LUPO/3L TDI | 2003-2005 | 27 | 1 | FMC,FME | G0E |
| AROSA | 2003-2004 | 27 | 1 | ||
| POLO | 1999-2001 | 27 | 1 | EHD,EHE,ERZ | |
| LUPO/3L TDI | 1998-2003 | 27 | 1 | DPB,ERZ,EHE, | |
| AROSA | 1997-2003 | 27 | 1 | ||
| POLO | 1994-1999 | 27 | 1 | CMH,CMJ |
Diagrams & fitment data powered by oemdiagrams.com
001409356 Volkswagen Flanged Shaft | Transmission is fitted on: LUPO/3L TDI 2003-2005; AROSA 2003-2004; POLO 1999-2001; LUPO/3L TDI 1998-2003; AROSA 1997-2003; POLO 1994-1999.
